Description
Collapsed Length (IN)13.04
Extended Length (IN)20.38
Collapsed Length (MM)331.3
Extended Length (MM)517.7
Compression @0.52m/s650
Rebound @0.52m/s2500
FinishZinc Plated
ReservoirNo
Body DesignSmooth Body (Non-Coilover)
Body Diameter46mm
Spring Seat IncludedNo
Adjustable DampingNon-Adjustable
Replacement Mounting KitB4-KT1-Z236A00
Product Description

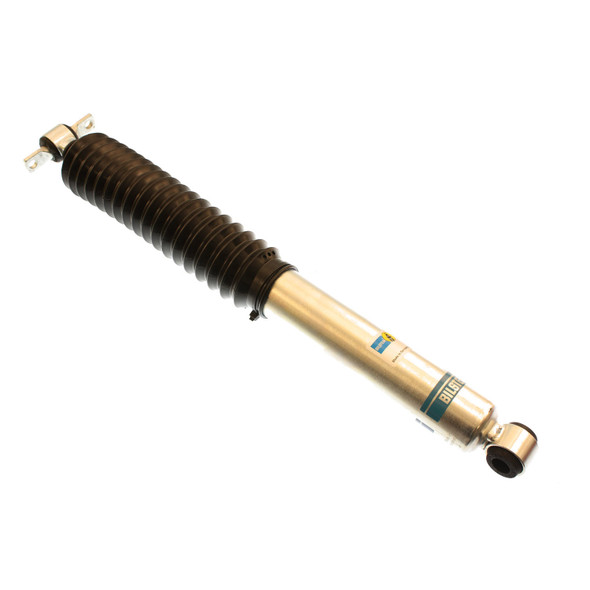

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Buyers Guide
Jeep CJ5 1983-1976, CJ7 1986-1976, CJ5 1983-1976, CJ7 1986-1976
