Description
ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2014-UP Ram 2500 using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.

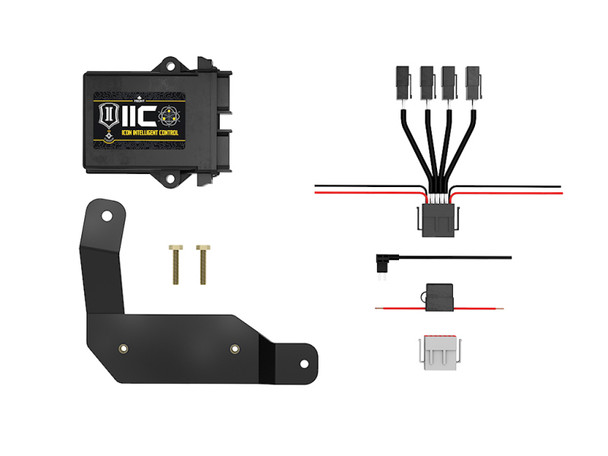

2014-UP RAM 2500/3500 IIC INSTALL KIT
TECH NOTE: Also requires installation of CDEV front and rear shock absorbers
- Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
- Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
- Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
- Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
- Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
- User interface provided by IIC Mobile App via Bluetooth connection to iOS device
- Application specific mounting brackets, hardware and wire harnesses
- Onboard sensors monitor G-forces and movement of vehicle chassis
Fitment:
Ram 2500 Big Horn 2014
Ram 2500 Big Horn 2015
Ram 2500 Big Horn 2016
Ram 2500 Big Horn 2017
Ram 2500 Big Horn 2018
Ram 2500 Big Horn 2019
Ram 2500 Big Horn 2020
Ram 2500 Big Horn 2021
Ram 2500 Big Horn 2022
Ram 2500 Laramie 2014
Ram 2500 Laramie 2015
Ram 2500 Laramie 2016
Ram 2500 Laramie 2017
Ram 2500 Laramie 2018
Ram 2500 Laramie 2019
Ram 2500 Laramie 2020
Ram 2500 Laramie 2021
Ram 2500 Laramie 2022
Ram 2500 Laramie Limited 2014
Ram 2500 Laramie Limited 2015
Ram 2500 Laramie Longhorn 2014
Ram 2500 Laramie Longhorn 2015
Ram 2500 Laramie Longhorn 2016
Ram 2500 Laramie Longhorn 2017
Ram 2500 Laramie Longhorn 2018
Ram 2500 Laramie Longhorn 2019
Ram 2500 Laramie Longhorn 2020
Ram 2500 Laramie Longhorn 2021
Ram 2500 Laramie Longhorn 2022
Ram 2500 Limited 2016
Ram 2500 Limited 2017
Ram 2500 Limited 2018
Ram 2500 Limited 2019
Ram 2500 Limited 2020
Ram 2500 Limited 2021
Ram 2500 Limited 2022
Ram 2500 Lone Star 2014
Ram 2500 Lone Star 2015
Ram 2500 Lone Star 2019
Ram 2500 Lone Star 2020
Ram 2500 Lone Star 2021
Ram 2500 Lone Star 2022
Ram 2500 Outdoorsman 2014
Ram 2500 Outdoorsman 2015
Ram 2500 Outdoorsman 2016
Ram 2500 Power Wagon 2014
Ram 2500 Power Wagon 2015
Ram 2500 Power Wagon 2016
Ram 2500 Power Wagon 2017
Ram 2500 Power Wagon 2018
Ram 2500 Power Wagon 2019
Ram 2500 Power Wagon 2020
Ram 2500 Power Wagon 2021
Ram 2500 Power Wagon 2022
Ram 2500 SLT 2014
Ram 2500 SLT 2015
Ram 2500 SLT 2016
Ram 2500 SLT 2017
Ram 2500 SLT 2018
Ram 2500 Tradesman 2014
Ram 2500 Tradesman 2015
Ram 2500 Tradesman 2016
Ram 2500 Tradesman 2017
Ram 2500 Tradesman 2018
Ram 2500 Tradesman 2019
Ram 2500 Tradesman 2020
Ram 2500 Tradesman 2021
Ram 2500 Tradesman 2022
