Description
ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2016-Up Tacoma using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.
ICON Intelligent Control (IIC) monitors, analyzes, and processes information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position.
TECH NOTE: Also requires installation of CDEV front coilovers (Part # 58735E, 58735E-700, or 59730E-CB) and CDEV rear shocks (Part # 57826EP)
- Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
- Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
- Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
- Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
- Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
- User interface provided by IIC Mobile App via Bluetooth connection to iOS device

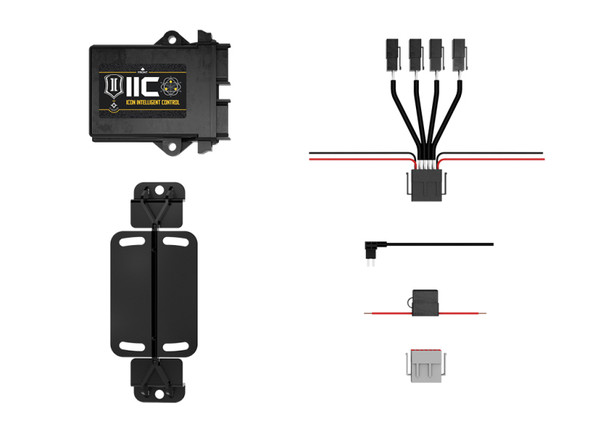

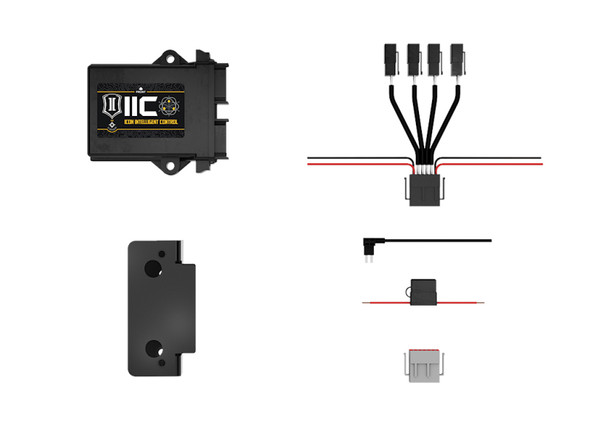

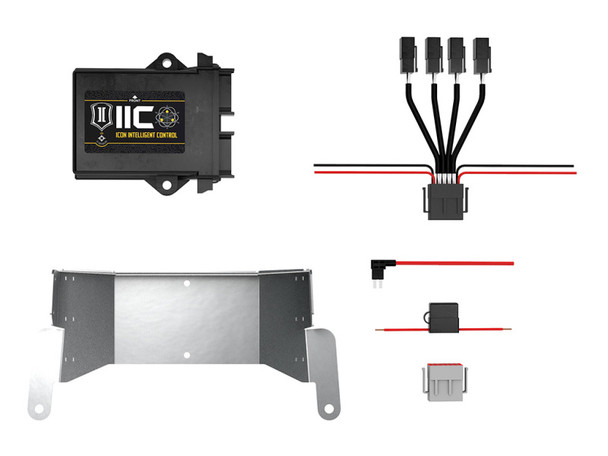

- Application specific mounting brackets, hardware and wire harnesses
- Onboard sensors monitor G-forces and movement of vehicle chassis
Fitment:
Toyota Tacoma Limited 2016
Toyota Tacoma Limited 2017
Toyota Tacoma Limited 2018
Toyota Tacoma Limited 2019
Toyota Tacoma Limited 2020
Toyota Tacoma Limited 2021
Toyota Tacoma Limited 2022
Toyota Tacoma Limited 2023
Toyota Tacoma SR 2016
Toyota Tacoma SR 2017
Toyota Tacoma SR 2018
Toyota Tacoma SR 2019
Toyota Tacoma SR 2020
Toyota Tacoma SR 2021
Toyota Tacoma SR 2022
Toyota Tacoma SR 2023
Toyota Tacoma SR5 2016
Toyota Tacoma SR5 2017
Toyota Tacoma SR5 2018
Toyota Tacoma SR5 2019
Toyota Tacoma SR5 2020
Toyota Tacoma SR5 2021
Toyota Tacoma SR5 2022
Toyota Tacoma SR5 2023
Toyota Tacoma Trail 2021
Toyota Tacoma Trail Special Edition 2023
Toyota Tacoma TRD Off-Road 2016
Toyota Tacoma TRD Off-Road 2017
Toyota Tacoma TRD Off-Road 2018
Toyota Tacoma TRD Off-Road 2019
Toyota Tacoma TRD Off-Road 2020
Toyota Tacoma TRD Off-Road 2021
Toyota Tacoma TRD Off-Road 2022
Toyota Tacoma TRD Off-Road 2023
Toyota Tacoma TRD Pro 2017
Toyota Tacoma TRD Pro 2018
Toyota Tacoma TRD Pro 2019
Toyota Tacoma TRD Pro 2020
Toyota Tacoma TRD Pro 2021
Toyota Tacoma TRD Pro 2022
Toyota Tacoma TRD Pro 2023
Toyota Tacoma TRD Sport 2016
Toyota Tacoma TRD Sport 2017
Toyota Tacoma TRD Sport 2018
Toyota Tacoma TRD Sport 2019
Toyota Tacoma TRD Sport 2020
Toyota Tacoma TRD Sport 2021
Toyota Tacoma TRD Sport 2022
Toyota Tacoma TRD Sport 2023
Additional Information
air_freight_prohibited: |
false |
not_carb_approved: |
false |
ltl_freight_required: |
false |
prop_65: |
Y |
part_type: |
automotive |
epa: |
N/A |
carb_acknowledgement_required: |
false |
regular_stock: |
false |
