Description

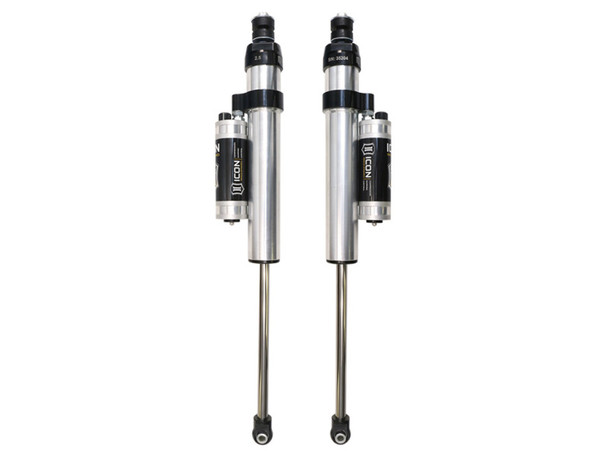

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON Vehicle Specific 2.5 Aluminum Series shocks are designed to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length and damping tune.
TECH NOTE: Compatible with 0-2.5" of rear lift on 2019-2023 Ram 1500 Rebel
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- Nitrogen charged monotube design with piggyback reservoir
- 6061 aircraft grade aluminum CNC machined components
- Double-sealed Schrader caps reduce risk of damage
- 100% Rebuildable
- 100% Revalveable
Fitment:
Ram 1500 Big Horn 2019
Ram 1500 Big Horn 2020
Ram 1500 Big Horn 2021
Ram 1500 Big Horn 2022
Ram 1500 Big Horn 2023
Ram 1500 HFE 2019
Ram 1500 HFE 2020
Ram 1500 HFE 2021
Ram 1500 HFE 2022
Ram 1500 HFE 2023
Ram 1500 Laramie 2019
Ram 1500 Laramie 2020
Ram 1500 Laramie 2021
Ram 1500 Laramie 2022
Ram 1500 Laramie 2023
Ram 1500 Laramie Longhorn 2019
Ram 1500 Laramie Longhorn 2020
Ram 1500 Laramie Longhorn 2021
Ram 1500 Limited 2019
Ram 1500 Limited 2020
Ram 1500 Limited 2021
Ram 1500 Limited 2022
Ram 1500 Limited 2023
Ram 1500 Limited Longhorn 2021
Ram 1500 Limited Longhorn 2022
Ram 1500 Limited Longhorn 2023
Ram 1500 Lone Star 2019
Ram 1500 Lone Star 2020
Ram 1500 Lone Star 2021
Ram 1500 Lone Star 2022
Ram 1500 Lone Star 2023
Ram 1500 Longhorn 2021
Ram 1500 Rebel 2019
Ram 1500 Rebel 2020
Ram 1500 Rebel 2021
Ram 1500 Rebel 2022
Ram 1500 Rebel 2023
Ram 1500 Special Service 2020
Ram 1500 Special Service 2021
Ram 1500 Tradesman 2019
Ram 1500 Tradesman 2020
Ram 1500 Tradesman 2021
Ram 1500 Tradesman 2022
Ram 1500 Tradesman 2023
Ram 1500 TRX 2021
Additional Information
air_freight_prohibited: |
false |
not_carb_approved: |
false |
ltl_freight_required: |
false |
prop_65: |
Y |
part_type: |
automotive |
epa: |
N/A |
carb_acknowledgement_required: |
false |
regular_stock: |
false |
