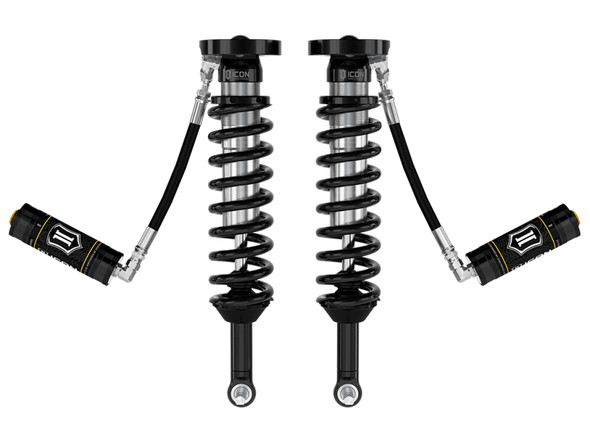

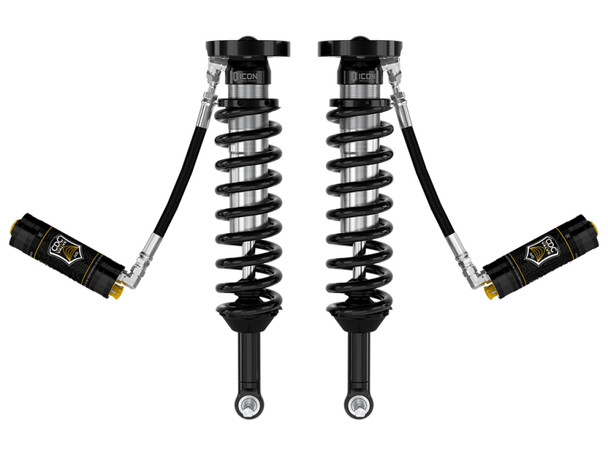

ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 2.5 Series Ext Travel VS RR CDCV Coilover Kit

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 9.5” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2024 Chevrolet Colorado WT, LT, and Z71.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

• High strength alloy CNC machined lower bar pin and application specific mounting hardware


• Remote reservoirs maintain cooler operating temperatures during extended off-road use


• ICON CDCV equipped for 10 settings of external compression damping adjustment


• PTFE lined spherical bearings for extended longevity and minimal deflection


• 100% Bolt-on - no drilling, cutting, or welding necessary for installation


• 20% increase in front wheel travel and improved ride quality over stock


• Vehicle specific tuned for superior shock damping and control


• Corrosion resistant CAD plated 2.5” diameter shock bodies


• Adjustable for 1.75-2.5" of front lift height over stock


• 6061 Aircraft grade aluminum CNC machined components


• 7/8" diameter hardened chrome plated shafts


• Fully rebuildable and re-tunable


• ICON engineered coil springs

Fitment:
Chevrolet Colorado LT 2023
Chevrolet Colorado LT 2024
Chevrolet Colorado WT 2023
Chevrolet Colorado WT 2024
Chevrolet Colorado Z71 2023
Chevrolet Colorado Z71 2024
