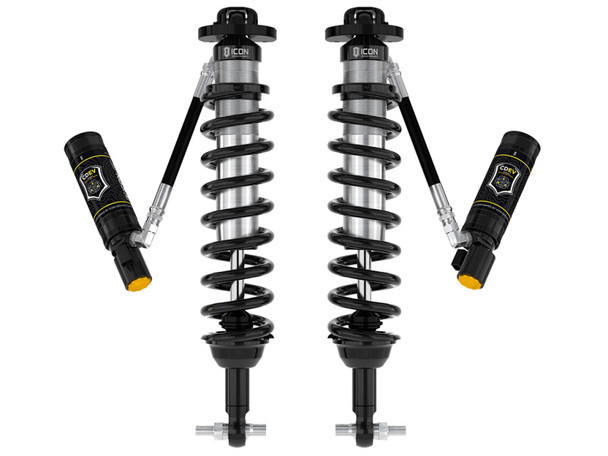

ICON 21-UP Ford Bronco 2-3in Front 2.5 VS RR CDEV COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized per application. These hardcore units are outfitted with remote reservoirs to stay cooler during intense wheeling and ICON’s CDEV for active compression adjustment
TECH NOTE: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes


• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)


• Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos


• Remote reservoirs maintain cooler operating temperatures during extended off-road use


• 100% Bolt-on - no drilling, cutting or welding necessary for installation


• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts


• Increased wheel travel (up to 11.5”) and ride quality over stock


• FK rod end bearings for extended longevity and minimal deflection


• Vehicle specific tuned for superior shock damping and control


• 6061 Aircraft grade aluminum CNC machined components


• High strength alloy CNC machined lower bar pin


• Fully rebuildable and re-tunable


• ICON engineered coil springs

Fitment:
Ford Bronco Badlands 2021
Ford Bronco Badlands 2022
Ford Bronco Badlands 2023
Ford Bronco Base 2021
Ford Bronco Base 2022
Ford Bronco Base 2023
Ford Bronco Big Bend 2021
Ford Bronco Big Bend 2022
Ford Bronco Big Bend 2023
Ford Bronco Black Diamond 2021
Ford Bronco Black Diamond 2022
Ford Bronco Black Diamond 2023
Ford Bronco Everglades 2022
Ford Bronco Everglades 2023
Ford Bronco First Edition 2021
Ford Bronco Heritage Edition 2023
Ford Bronco Heritage Limited Edition 2023
Ford Bronco Outer Banks 2021
Ford Bronco Outer Banks 2022
Ford Bronco Outer Banks 2023
Ford Bronco Wildtrak 2021
Ford Bronco Wildtrak 2022
Ford Bronco Wildtrak 2023
