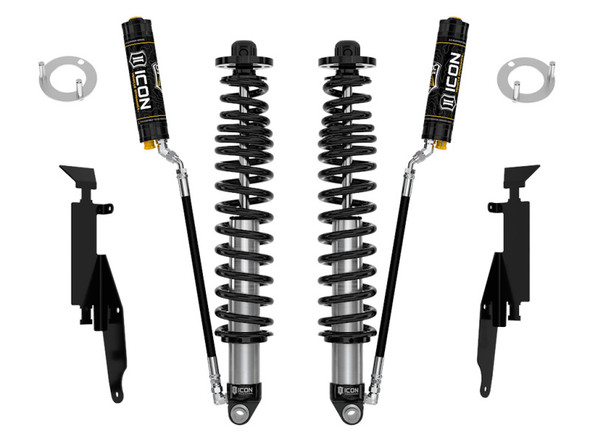

ICON 21-UP Ford Bronco 2-3in Rear 2.5 VS RR COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. The shock’s bigger 2.5” body and larger piston area improves damping ability and ride quality across varying types of terrain.
TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number 48711.

• Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos


• Remote reservoirs maintain cooler operating temperatures during extended off-road use


• 100% Bolt-on - no drilling, cutting or welding necessary for installation


• Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft


• FK rod end bearings for extended longevity and minimal deflection


• Increased wheel travel (up to 14”) and ride quality over stock


• Vehicle specific tuned for superior shock damping and control


• 6061 Aircraft grade aluminum CNC machined components


• Unique ICON engineered triple rate coil springs


• Fully rebuildable and re-tunable

Fitment:
Ford Bronco Badlands 2021
Ford Bronco Badlands 2022
Ford Bronco Badlands 2023
Ford Bronco Base 2021
Ford Bronco Base 2022
Ford Bronco Base 2023
Ford Bronco Big Bend 2021
Ford Bronco Big Bend 2022
Ford Bronco Big Bend 2023
Ford Bronco Black Diamond 2021
Ford Bronco Black Diamond 2022
Ford Bronco Black Diamond 2023
Ford Bronco Everglades 2022
Ford Bronco Everglades 2023
Ford Bronco First Edition 2021
Ford Bronco Heritage Edition 2023
Ford Bronco Heritage Limited Edition 2023
Ford Bronco Outer Banks 2021
Ford Bronco Outer Banks 2022
Ford Bronco Outer Banks 2023
Ford Bronco Wildtrak 2021
Ford Bronco Wildtrak 2022
Ford Bronco Wildtrak 2023
