Description

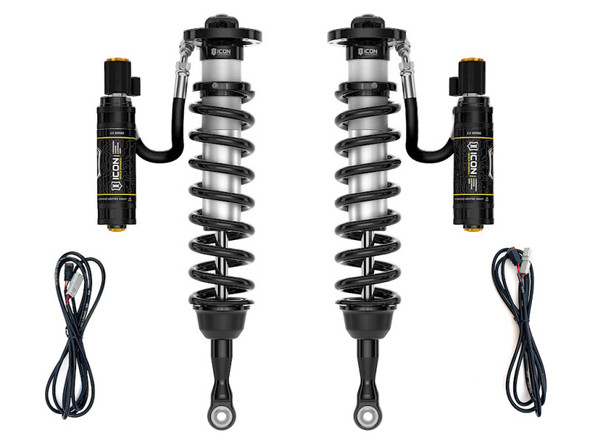

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
TECH NOTE: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- 6061 Aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
- ICON engineered coil springs
Fitment:
Toyota Sequoia Capstone 2023
Toyota Sequoia Capstone 2024
Toyota Sequoia Limited 2023
Toyota Sequoia Limited 2024
Toyota Sequoia Platinum 2023
Toyota Sequoia Platinum 2024
Toyota Sequoia SR5 2023
Toyota Sequoia SR5 2024
Toyota Sequoia TRD Pro 2023
Toyota Sequoia TRD Pro 2024
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
Toyota Tundra TRD Pro 2022
Toyota Tundra TRD Pro 2023
Toyota Tundra TRD Pro 2024
