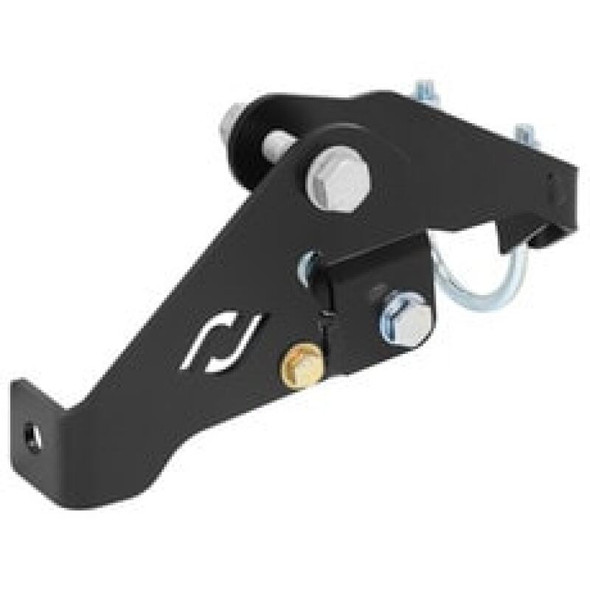

RockJock JK Wrangler Unlimited 4Dr Currectlync High Steer Front Trac Bar Relocation/Ram Assist Mount

RockJocks Trac Bar Relocation and Ram Assist Mount Axle Bracket Kit for JK Wrangler and Unlimited vehicles is designed specifically to be used in conjunction with our High Steer Knuckles and our longer JL/JT Trac Bar. The JL/JT trac bars longer length pushes the trac bar adjuster joint outboard of the frame rail providing an additional 5/8 in. of up-travel! This integrated trac bar relocation and ram assist mounting bracket raises the mounting point for the JL/JT trac bar 2 in., preventing you from incurring any bump steer, as well as giving you a solid mounting point for your hydraulic steering assist ram. The bottom of the bracket acts as a skid plate, protecting the ram from rocks. Both the large and small axle brackets included in this kit feature relocated sway bar end link mouning holes causing your sway bar end link length to require adjustment. Brackets easily install, but do require some minor welding, however, both brackets can be mounted solidly enough with the supplied bolts to allow you to drive to a welder if need be. We recommend buying this bracket in our complete RJ-430000-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. Use of their RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.
Currectlync® High Steer Kit; Incl. Trac Bar Relocation And Ram Assist Steering Mount Axle Bracket;

• Complete RJ-430000-101 High Steer Knuckle Kit You Are Ensured A Complete System That Includes Everything You Need


• We Highly Recommend The Use Of Our RJ-107101-101 Adjustable Bump Stop Kit To Attain Maximum Attainable Up-Travel


• Requires A Hydraulic Assist Steering Ram Stroke Of 7.375 in. To Achieve Full Potential [Factory Steering Radius]


• For Use On Any Factory JK Dana 30 Or Dana 44 Front Differential Or Any Aftermarket Replacement Axle


• Brackets Provide New Sway Bar Link Mounting Holes That Are Raised 2 1/8 in. Higher Than Stock


• The Optimized Geometry This Kit Provides Requires The Use Of Our RJ-9120FJLF Trac Bar


• This Bracket Is Intended For Use In Conjunction With Common PSC Ram Assist Steering Kits


• Trac Bar And Sway Bar End Link Relocation And Ram Mount [Passenger Side] Bracket


• Incl. All Necessary Hardware And Step-By-step Instructions


• Sway Bar End Link Relocation [Driver Side] Bracket

Fitment:
Jeep Wrangler 70th Anniversary 2011
Jeep Wrangler 75th Anniversary 2016
Jeep Wrangler JK Rubicon 2018
Jeep Wrangler JK Sahara 2018
Jeep Wrangler JK Sport 2018
Jeep Wrangler JK Sport S 2018
Jeep Wrangler JK Unlimited Rubicon 2018
Jeep Wrangler JK Unlimited Sahara 2018
Jeep Wrangler JK Unlimited Sport 2018
Jeep Wrangler JK Unlimited Sport S 2018
Jeep Wrangler Rubicon 2007
Jeep Wrangler Rubicon 2008
Jeep Wrangler Rubicon 2009
Jeep Wrangler Rubicon 2010
Jeep Wrangler Rubicon 2011
Jeep Wrangler Rubicon 2012
Jeep Wrangler Rubicon 2013
Jeep Wrangler Rubicon 2014
Jeep Wrangler Rubicon 2015
Jeep Wrangler Rubicon 2016
Jeep Wrangler Rubicon 2017
Jeep Wrangler Sahara 2007
Jeep Wrangler Sahara 2008
Jeep Wrangler Sahara 2009
Jeep Wrangler Sahara 2010
Jeep Wrangler Sahara 2011
Jeep Wrangler Sahara 2012
Jeep Wrangler Sahara 2013
Jeep Wrangler Sahara 2014
Jeep Wrangler Sahara 2015
Jeep Wrangler Sahara 2016
Jeep Wrangler Sahara 2017
Jeep Wrangler Sport 2010
Jeep Wrangler Sport 2011
Jeep Wrangler Sport 2012
Jeep Wrangler Sport 2013
Jeep Wrangler Sport 2014
Jeep Wrangler Sport 2015
Jeep Wrangler Sport 2016
Jeep Wrangler Sport 2017
Jeep Wrangler Sport S 2016
Jeep Wrangler Unlimited 70th Anniversary 2011
Jeep Wrangler Unlimited 75th Anniversary 2016
Jeep Wrangler Unlimited Rubicon 2007
Jeep Wrangler Unlimited Rubicon 2008
Jeep Wrangler Unlimited Rubicon 2009
Jeep Wrangler Unlimited Rubicon 2010
Jeep Wrangler Unlimited Rubicon 2011
Jeep Wrangler Unlimited Rubicon 2012
Jeep Wrangler Unlimited Rubicon 2013
Jeep Wrangler Unlimited Rubicon 2014
Jeep Wrangler Unlimited Rubicon 2015
Jeep Wrangler Unlimited Rubicon 2016
Jeep Wrangler Unlimited Rubicon 2017
Jeep Wrangler Unlimited Sahara 2007
Jeep Wrangler Unlimited Sahara 2008
Jeep Wrangler Unlimited Sahara 2009
Jeep Wrangler Unlimited Sahara 2010
Jeep Wrangler Unlimited Sahara 2011
Jeep Wrangler Unlimited Sahara 2012
Jeep Wrangler Unlimited Sahara 2013
Jeep Wrangler Unlimited Sahara 2014
Jeep Wrangler Unlimited Sahara 2015
Jeep Wrangler Unlimited Sahara 2016
Jeep Wrangler Unlimited Sahara 2017
Jeep Wrangler Unlimited Sport 2010
Jeep Wrangler Unlimited Sport 2011
Jeep Wrangler Unlimited Sport 2012
Jeep Wrangler Unlimited Sport 2013
Jeep Wrangler Unlimited Sport 2014
Jeep Wrangler Unlimited Sport 2015
Jeep Wrangler Unlimited Sport 2016
Jeep Wrangler Unlimited Sport 2017
Jeep Wrangler Unlimited Sport S 2016
Jeep Wrangler Unlimited X 2007
Jeep Wrangler Unlimited X 2008
Jeep Wrangler Unlimited X 2009
Jeep Wrangler Unlimited X 2010
Jeep Wrangler X 2007
Jeep Wrangler X 2008
Jeep Wrangler X 2009
Jeep Wrangler X 2010
