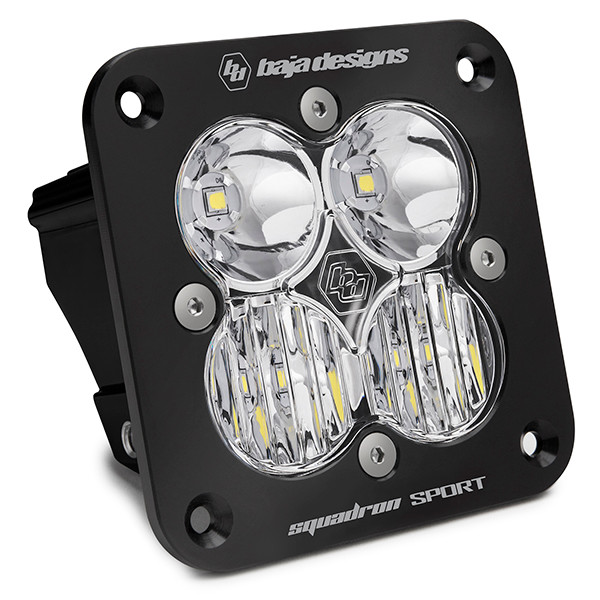

With a sleek black gloss appearance, Baja Designs Squadron Sport LED flush mount light from Baja Designs will allow you to light up the night. Don’t let the compact size of these 3” light pods fool you. The black flush mount housing is perfect for any application where you need a flush mount solution auxiliary lighting. While compact in size the Squadron Sport outshines the competition through both appearance and performance using next-generation LEDs pushing out 3,162 lumens. USPTO Reg No. 5,766,659
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
ELS™ Scores:
Click to learn more about Baja Designs Effective Lighting Score (ELS)
Squadron Sport Spot Clear: ELS 112⁰/ 5.3/ 229'/ 1973
Squadron Sport Driving Combo Clear: ELS 112⁰/ 7.1 / 183'/ 2441
Squadron Sport Wide Cornering Clear: ELS 124⁰/ 6.7/ 114'/ 2506
Features:
Satisfaction Guarantee – 30-Day Money Back Guarantee uService – Replaceable Lenses And Optics ClearView – All The Light, Right Where You Need It MoistureBlock – Waterproof, Rain Proof, Submersible CopperDrive – Safely Driving LEDs at 100% 5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions:
Depth (in.): 2.770 Height (in.): 3.070 Length (in.): 3.070 Weight (lbs.): 0.750
Specifications:
Amperage Rating (A): 2.200 Average Rated Life (hr.): 49,930 Beam Pattern: Driving/Combo Bezel Material: Powder Coated Cast Aluminum Brightness (Lumens): 3162 Description: Flush Mount; Driving/Combo; Clear Housing Color: Black Housing Material: Powder Coated Cast Aluminum Lens Color: Clear Lens Material: Hardcoated Polycarbonate Light Quantity: 1 Lighting Modes: Beam Lighting Quantity: 4 Lighting Technology: LED Lighting Type: Forward Projecting Mounting Hardware Included: Yes Mounting Hardware Material: Stainless Steel Overvoltage Protection: Built-In Product Type: Squadron Sport Flush Mount LED Light Pod Wattage (W): 30.360 Wiring Harness Included: No
Standards & Compliance
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing) Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing) Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Product Specifications
- Bulb Type: LED
- Light Color: White
- Quantity: 1
