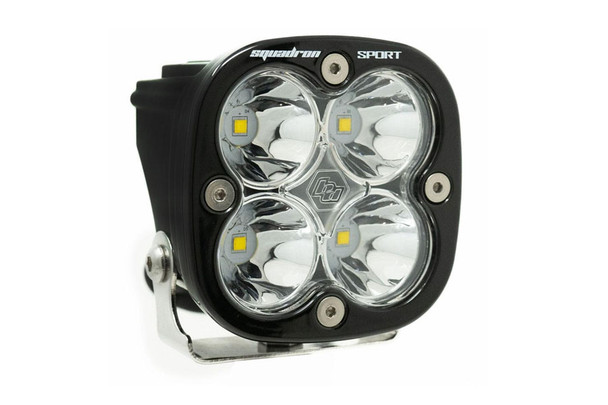

Upgrade your light package with the Squadron Sport LED light from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Sport is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 3,162 lumens at 30 watts. USPTO Reg No. 5,766,659
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 64-0139 (single light harness) or 640117 (two-light harness).
ELS™ Scores:
Click to learn more about Baja Designs Effective Lighting Score (ELS)
Squadron Sport Spot Clear: ELS 112⁰/ 5.3/ 229'/ 1973
Squadron Sport Driving Combo Clear: ELS 112⁰/ 7.1 / 183'/ 2441
Squadron Sport Wide Cornering Clear: ELS 124⁰/ 6.7/ 114'/ 2506
Features:
Satisfaction Guarantee – 30-Day Money Back Guarantee uService – Replaceable Lenses And Optics ClearView – All The Light, Right Where You Need It MoistureBlock – Waterproof, Rain Proof, Submersible CopperDrive – Safely Driving LEDs at 100% 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
Lens Color: Clear Lens Material: Hardcoated Polycarbonate Light Quantity: 1 Lighting Modes: Beam Lighting Quantity: 4 Lighting Technology: LED Lighting Type: Forward Projecting Mounting Hardware Included: Yes Mounting Hardware Material: Stainless Steel Overvoltage Protection: Built-In Product Type: Squadron Sport LED Light Pod Wattage (W): 30.360 Wiring Harness Included: No Amperage Rating (A): 2.200 Average Rated Life (hr.): 49,930 Beam Pattern: Spot Bezel Material: Powder Coated Cast Aluminum Brightness (Lumens): 3162 Description: Spot; Clear Housing Color: Black Housing Material: Powder Coated Cast Aluminum
Standards & Compliance
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing) Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing) Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.): 2.770 Height (in.): 3.070 Length (in.): 3.070 Weight (lbs.): 0.750
Product Specifications
- Bulb Type: LED
- Light Color: White
- Quantity: 1
