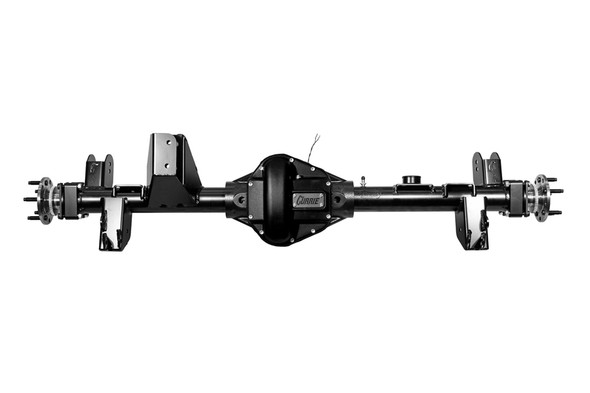

The Currie HD60 rear axle assembly for the 2018 and newer Jeep Wrangler JL is the perfect upgrade for off-road enthusiasts or overlanders seeking enhanced strength and durability. The HD60 rear features our massively reinforced 60-series center section, large 3.5-inch diameter axle tubes, and 40-spline axles that greatly upgrade strength and reliability beyond the stock Wrangle rear axle assembly. Additionally, the HD60 retains the powerful factory rear brakes and the factory wheel bolt pattern so that you can keep those nice wheels.
Features
68 in. JL Rubicon Width (+1.5 in. Over Non-Rubicon Models) Heavy-Duty 60-Series Low-Pinion Center Section Features Thicker Walls and Webbing for Unmatched Strength 3.5 x .375-inch DOM Axle Tubes Deliver Industry-Leading Strength 40-Spline Chromoly Axles are More than 2x the Strength of Stock Axles, and 1.5x Stronger than the Competition's 35-Spline Axles Currie Heavy-Gauge OE Fitment Brackets Choice of Selectable Locker and Gear Ratio Currie Rock-Proof Nodular Iron Differential Cover Upgraded 1350 Pinion Yoke Satin Black Powder Coat for Long Lasting Protection Retains Stock 5x5 Wheel Bolt Pattern Retains the Vehicles Factory Rear Brake Components
Specifications
Center Section - Currie LP60 nodular Iron low-pinion center section Gear Set - Standard Dana 60 low-pinion Pinion Yoke - 1350 u-joint Differential Cover - Currie nodular-iron cover with gasketed fill plug with dipstick, Red Axle Tubes - 3.5 in. diameter x .375 in. wall DOM tube Axle Bearings - Set 80 tapered roller bearing Axles - Currie Performance semi-floating, 40-spline (1.7” diameter) axles with tone rings for ABS/ESP retention Brake Rotors - Not included, reuses the stock JL Sport/Sahara or Rubicon rear rotors Brake Calipers - Not included, reuses the stock JL Sport/Sahara or Rubicon calipers Suspension Brackets - Heavy gauge 3/16” steel mounting brackets Geometry - Optimized for stock height up to 4” of lift Width - 68-inches between wheel mounting surfaces (stock JL Rubicon width) Wheel Bolt Pattern - 5 on 5 inch with 14 MM studs (standard Wrangler JL pattern) Oil Capacity - 3.0 quarts of 75W-140 synthetic gear oil (API GL-5 Rated) Finish - Black satin powder coat
Notes
ABS Sensors - The stock axle must be retained and installed on the Currie housing
Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097842 is recommended (verify manufacturer vehicle fitment)
Brake Components - Retains the stock rear disk brake rotors or calipers; mounting brackets are designed to reuse the stock rotors and calipers from the vehicle
Wheel and Tire Size - 17-inch or larger wheels are required for proper clearance of the brake calipers. The maximum recommended tire size is 39-inches for semi-floating axles
Overall Width - Axle width is 68-inches (JL Rubicon stock) between wheel mounting surfaces
Product Specifications
- Axle Style: Semi-Float
- Axle Type: Dana 60
- Bolt Pattern: 5x5
- Spline Count: 40
- Tubing Diameter: 3.50in
- Width: 68in
