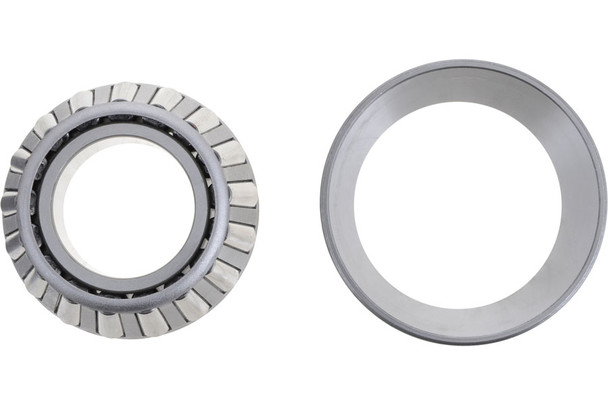

Differential Pinion Bearing Set
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Primary Vehicle Applications
Jeep: 1984–2006 Cherokee (XJ), Wrangler (TJ/YJ), and some JK/JKU outer pinion applications. Ford: 1980–2002 F-250/F-350, 1992-1996 Bronco, and 2000-2005 Excursion. Dodge: 1995–2002 Ram 1500, 1995–1997 Ram 2500, and 2007-2011 Nitro. Other: 1967-1977 International Scout, 1980-1983 Corvette (Dana 36/44).
Common Axle Fitments
Dana 30 Front (Jeep) Dana 44 Front (Dodge/Jeep) Dana 50 Front (Ford) Dana 36 Front (Corvette)
Specifications:
Drive Type: 4WD Fitment Notes: Front Inner, Front Outer, Rear Inner Cone Bore (IN): 1.38 Bearing Type: Pinion Head Bearing Cone Bore (MM): 34.93 Cone Length (IN): 1.00 Cone Length (Mm): 25.40 Cup Length (IN): 0.78 Cup Length (Mm): 19.84 Cup Outside Diameter (In): 2.84 Cup Outside Diameter (Mm): 72.21 Design: Tapered Roller Bearing Housing Bore (IN): 2.84 Housing Bore (Mm): 72.23
Product Specifications
- Location: Front and Rear
- Type: Bearing
