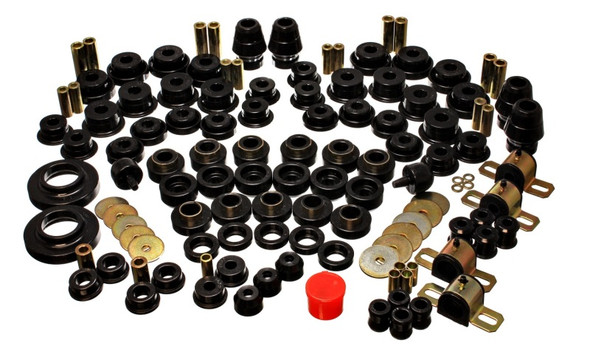

Energy Suspension Complete Hyper-Flex Suspension Bushing Kit for 87-95 Jeep Wrangler YJ

Durable Materials: HYPER FLEX Performance Polyurethane suspension bushings outlast the factory rubber bushings.

Improved Stability: Increases your Jeeps stability and control as well as reducing wheel hop.

Improved Ride Quality: Polyurethane bushings offer a stiff wobble-free ride.

Additional Details

Energy Suspensions' Complete Hyper-Flex Suspension Bushing Kit is an amazing way to breathe life back into your Wrangler's suspension system. The durable polyurethane bushings are designed to be factory replacements for those old worn-out rubber bushings currently on your Jeep.

Installation Notes
Installation Difficulty:
Skill Level 3 -
Advanced
Installation Time: 3-6 hours
Parts Included
One 1036 mount
One 15.810 backing plate
Two 15.348 7/16 lockwasher
Four 15.342 7/16 flat washer
Two 15.530 7/16 -14 x 1 bolt
17112 installation instructions
Two 4403
Four 2223 main eye bushings
Two 15.008 3/4 O.D. x 9/16 I.D. x 3.00 sleeve
Eight 2086 rear spring eye and frame shackle bushings
Four 15.002 3/4 O.D. x 1/2 I.D. x 3.085 sleeve
17040 installation instructions
Four 2223 main eye bushings
Two 15.008 3/4 O.D. x 9/16 I.D. x 3.00 sleeve
Eight 2086 rear spring eye and frame shackle bushings
Four 15.002 3/4 O.D. x 1/2 I.D. x 3.085 sleeve
One 4017 bushing, molded on nipple (# molded on part)
One 4019 bushing .400 hgt. x .675 I.D.
Four 4081 bushing .670 hgt. x 1-1/4"I.D.
Six 4074 bushing, molded in sleeve (# molded on part)
Four 4075 bushing, molded in sleeve (# molded on part)
Six 4080 bushing, conical shape(# molded on part)
Ten 15.305 (2" O.D. x 1/2" I.D. washer)
One 17033 installation instructions
Four 7036 bushings
Two 15.102 (3/4"O.D. x 1/2"I.D. x 1.600 sleeve)
17039 installation instructions
Four 7036 bushings
Two 15.102 (3/4"O.D. x 1/2"I.D. x 1.600 sleeve)
Two 5009 (15/16? bushings)
Two 5012 (1-1/8" bushings)
Four 2201 upper and lower end link grommets
17039 installation instructions
Four 13001 tie-rod boots
Two 9.11101 grease tube
Warranty
2 Year Warranty

Specifications

• Features: Polyurethane
• Color: Black or Red

Fitment

• 1995 Jeep Wrangler (YJ)
• 1994 Jeep Wrangler (YJ)
• 1993 Jeep Wrangler (YJ)
• 1992 Jeep Wrangler (YJ)
• 1991 Jeep Wrangler (YJ)
• 1990 Jeep Wrangler (YJ)
• 1989 Jeep Wrangler (YJ)
• 1988 Jeep Wrangler (YJ)
• 1987 Jeep Wrangler (YJ)
