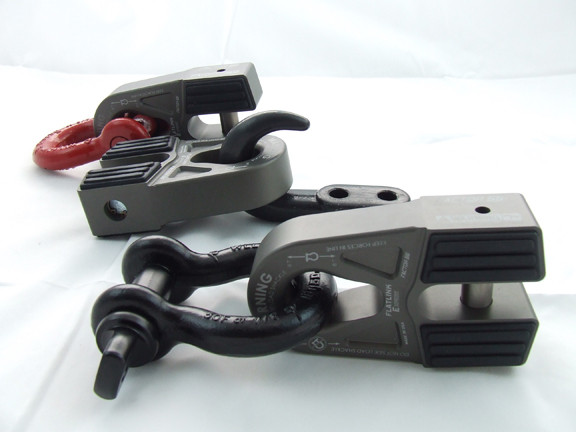

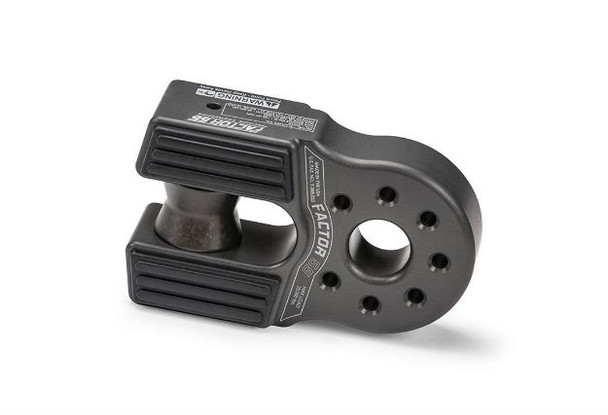

The world’s first foldable winch shackle mount with self-centering load spool.
Compatible with wire rope diameters of up to 3/4″ and synthetic rope tube thimbles up to 5/8″ in diameter. Fits shackle pin diameters of 1 1/8″. 7/8″ diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs.
Features
Replace conventional winch hooks with a safer more secure shackle/D-ring Safer recoveries through the practice of Closed System Winching Lightweight – Precision CNC machined 6000 series Military Grade Aluminum No splicing required – double shear pin design Designed for both steel cable and synthetic winch rope eyes Equipped with a shear pin load centering spool for wire rope applications Foldable and stows rattle free against fairleads Integrated EPDM rubber pads for fairlead protection Fits common 7/8 and 1” screw pin shackle sizes (1.0 and 1.125 pin diameters) For synthetic rope diameters up to 5/8 and wire rope up to 1” Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray 7/8” diameter double shear pin Max Rated Load: 26,000 pounds Ultimate Strength: 68,000 pounds Weight: 51oz Frequently Asked Questions (FAQs)
Q: What are the advantages of a closed loop winch system?
A: Closed loop winching systems offer much greater safety than open hooks. The FlatLink XXL creatures a secure connection to your shackles, greatly decreasing the chance of accidental disengagement.
Q: Is it easy to install?
A: Yes. The FlatLink XXL installs quickly to your winch line with the included 7/8" double shear pin and internal snap ring.
Product Specifications
- Capacity: 26,000lbs
- Color: Grey
- Finish: Anodized
- Material: Aluminum
- Type: Shackle Mount
