Fox Racing Shox 883-06-069 Rear 2.5 Factory Series Internal Bypass Piggyback Reservoir Shock Set with Dual Speed Compression Adjustment for 07-18 Jeep Wrangler JK

The FOX Racing Shox 2.5 Factory Race Series Internal Bypass shocks for Wrangler JK delivers patented race-dominating position sensitive damping technology and performance into a hassle free bolt-on kit which even includes reservoir brackets. Patented, position sensitive Internal Bypass technology contains internal passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. The only direct replacement kits on the market that provide for a plush predictable ride with the ability to ramp up damping force for extreme use. Utilizing the same technology as FOX championship winning Trophy Truck shocks to maximize the entire wheel travel, take larger hits, and deliver bigger grins. These Shocks also come equipped with a Dual Speed Compression adjustment knob for the most perfect suspension tuning and ride quality control. A simple rotation on either of the two adjuster knobs allows for 10 separate low-speed and 12 high-speed compression levels. A black anodized aluminum reservoir increases cooling efficiency.

Additional Details

Body: 2.5" Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies

External Reservoir 2.5" Smooth bore and honed seamless alloy reservoir

Components Black anodized, CNC Machined 6061-T6 billet aluminum

Shaft 7/8" 17-4 H900 hard chrome plated stainless steel, hard chrome plated

Piston 6061-T6 hard-anodized, high flow aluminum design

Valving Application specific valving to maximize offroad performance

Seals Redundant sealing pack system main seal, wiper seal, scraper seal

Oil JM92 Advanced Suspension Fluid. Specially formulated for ultimate performance at variable temperatures

Mounting: Teflon-lined, heat-treated, alloy steel spherical bearing

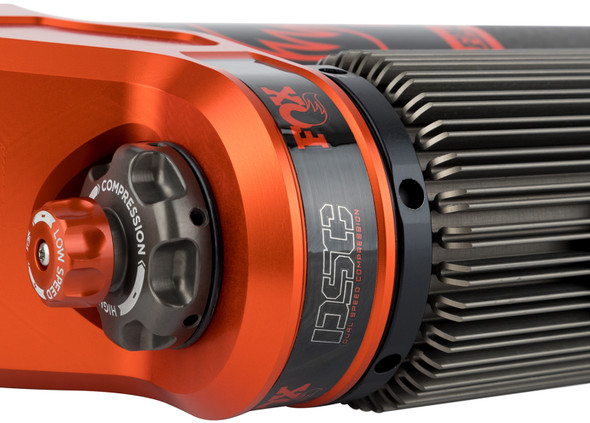

Dual Speed Compression Adjustments: 10 Low Speed, 12 High Speed Levels

Installation Notes
Installation Difficulty:
Skill Level 2 -
Intermediate
Installation Time: 1-2 hours
Parts Included
Warranty
Limited Lifetime Warranty

Specifications

• Color: Silver
• Features: Dual Speed Compression Adjustment, Internal Bypass, Monotube, Nitrogen Charged, Piggyback Reservoir
• Location: Rear
• Fits Lift Heights: 2.50, 2.75, 3.00, 3.25, 3.50, 3.75, 4.00
• Lift Range: 0 - 2.5 inch, 3 - 4.5 inch
• Rear Collapsed Length: 17.120
• Rear Extended Length: 27.860
• Rear Travel: 10.74
• Shock Valving: Adjustable
• Shipping Weight: 38lb
• Shipping Dimensions: 34in x 19in x 12in (L x W x H)

Fitment

• 2018 Jeep Wrangler 2-Door (JK)
• 2017 Jeep Wrangler 2-Door (JK)
• 2016 Jeep Wrangler 2-Door (JK)
• 2015 Jeep Wrangler 2-Door (JK)
• 2014 Jeep Wrangler 2-Door (JK)
• 2013 Jeep Wrangler 2-Door (JK)
• 2012 Jeep Wrangler 2-Door (JK)
• 2011 Jeep Wrangler 2-Door (JK)
• 2010 Jeep Wrangler 2-Door (JK)
• 2009 Jeep Wrangler 2-Door (JK)
• 2008 Jeep Wrangler 2-Door (JK)
• 2007 Jeep Wrangler 2-Door (JK)
• 2018 Jeep Wrangler Unlimited 4-Door (JK)
• 2017 Jeep Wrangler Unlimited 4-Door (JK)
• 2016 Jeep Wrangler Unlimited 4-Door (JK)
• 2015 Jeep Wrangler Unlimited 4-Door (JK)
• 2014 Jeep Wrangler Unlimited 4-Door (JK)
• 2013 Jeep Wrangler Unlimited 4-Door (JK)
• 2012 Jeep Wrangler Unlimited 4-Door (JK)
• 2011 Jeep Wrangler Unlimited 4-Door (JK)
• 2010 Jeep Wrangler Unlimited 4-Door (JK)
• 2009 Jeep Wrangler Unlimited 4-Door (JK)
• 2008 Jeep Wrangler Unlimited 4-Door (JK)
• 2007 Jeep Wrangler Unlimited 4-Door (JK)
