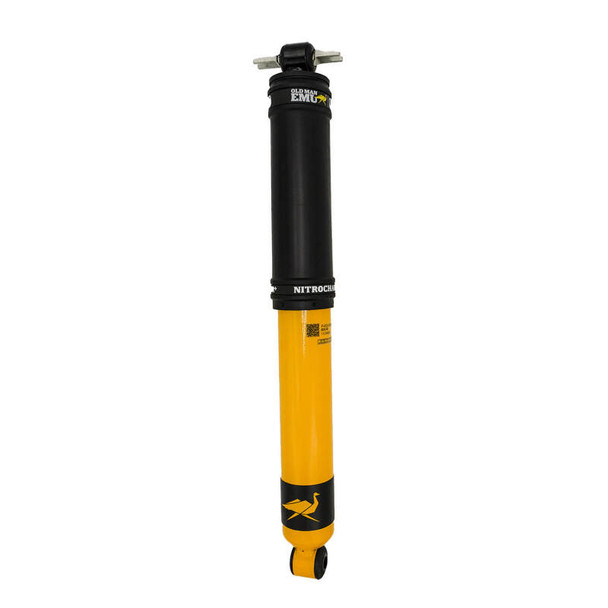

Old Man Emu 63048 Rear Nitrocharger Sport Shock Absorber for 97-06 Jeep Wrangler TJ with 2-2.5" Lift

Old Man Emu suspension systems have always focused on ride quality rather than ride height and this new line of shock absorbers includes some of the latest shock valving technology achieving a whole new level of ride quality. Most dual and monotube shocks typically feature a two-stage valving process, the new OME NitroCharger Sport features a triple-stage valving process rivaled only by a remote canister adjustable shock. These have been stacked it into the most durable shock body and adjusted it by load capacity for you. So, rather than offering a single adjustable shock, the OME engineers have done all of the testing and tuning adjustments for you. You get to choose from a selection of shock absorbers for your application based on your load-carrying configuration, guaranteeing an immediate and ideal ride without any costly fine-tuning required post-installation. The monotube style main piston valving improves transition and direction changes while the extra base valving provides more fine-tuning for comfort and control. So, the new OME NitroCharger Sport feels like a monotube without the vulnerability or the high price tag.

Additional Details

Discs Thickness: . 0.15mm to 0.38mm
Discs Diameters: 8.5mm, 11mm, 13mm, and 16.75mm
2 Extra Discs Added to Cylinder End Compression
Different Diameter Discs in the Mid-Range Can Be Fine Tuned as a Multistage Compression Stack
Discs Thickness: . 0.11mm to 0.51mm
Discs Diameter: 14mm to 30mm
Bleed Aperture: 0.15mm2 to 2.90mm2
Different Diameter Discs Can be Used to Create Multistaging Within the Stack
Multistaging the Mid-Range Allows Forgiving Initial Control Over Small Road Imperfections, and Heavier More Commanding Control When Demanded
Compression Stack Discs Are Constructed From the Same Material as the Rebound Stack
Discs Thickness: .0045” to .0200”
Discs Diameter: 14mm to 30mm
Bleed Aperture: 0.15mm2 to 2.90mm2
Different Diameter Discs Can be Used to Create Multistaging Within the Stack
Multiple Tuning Options and Oil Flow Back Management
Teflon Brand for Reduced Friction
Reduces Shock Fade
Less Restricted Design Reduces Heat Generation and Aeration
Open Apertures Present More Uniform Flow to the Bleed Discs and Disc Stacks For More Consistent Control
Virtually Eliminates Contaminant Damage
Provides Outstanding Gas and Oil Retention
Withstands Greater Internal Pressures and Higher Temperatures
Provides Greater Support to the Oil Seal and Increased Reserve Tube Volume For Oil Fill And Gas Expansion
Teflon Brand for Reduced Friction
Tight Tolerances
Consistent and Uniform Damping Performance
Constructed From High Density Polyethylene (HDPE)
Impact Resistant and Will Not Crack, Split, Or Shatter
Collapsed Length: 13.30in
Extended Length: 22.0in

Installation Notes
Installation Difficulty:
Skill Level 2 -
Intermediate
Installation Time: Less than an hour
Parts Included
Rear Nitrocharger Shock
Shock Bushings
Warranty
3 Year Warranty

Specifications

• Features: Nitrogen Charged
• Lift Range: 2 - 2.5 inch
• Shipping Weight: 8lb
• Shipping Dimensions: 22in x 6in x 4in (L x W x H)

Fitment

• 2006 Jeep Wrangler (TJ)
• 2005 Jeep Wrangler (TJ)
• 2004 Jeep Wrangler (TJ)
• 2003 Jeep Wrangler (TJ)
• 2002 Jeep Wrangler (TJ)
• 2001 Jeep Wrangler (TJ)
• 2000 Jeep Wrangler (TJ)
• 1999 Jeep Wrangler (TJ)
• 1998 Jeep Wrangler (TJ)
• 1997 Jeep Wrangler (TJ)
