Rancho 2.5 Inch Sport Lift Kit for 97-06 Jeep Wrangler TJ

Rancho’s redesigned 2.5 Inch Sport Lift Kit is the perfect system for the Jeep Wrangler TJ or Unlimited LJ owner who wants to fit 33x12.50 tire while retaining a low center of gravity. This kit includes lower adjustable control arms with D2 bushings to correct pinion angles for proper drive line geometry. The D2 synthetic, high articulation bushings in the control arms deliver superior dampening plus improved ride and handling characteristics. The D2 bushing has a firmer inner bearing material and a softer outer material to minimize noise, vibration, and harshness. The D2 bushing is grease free with a liner impregnated into the internal bushing that serves as a lubricating agent for silent, maintenance-free operation. Rancho backs the components in this kit with their Limited Lifetime Warranty.

Many states have laws that limit the maximum height of a lifted vehicle. Never exceed the legal height limit.

Additional Details

Available in Four Shock Configurations: RS5000X, RS7000MT, RS9000XL, or Without Shocks
Designed for Use with up to 33” Tires
Lower Control Arms Feature D2 Bushings
Transfer Case Shifter Relocation Bracket
Compatible with Factory Drive Shafts
Brackets Are High-Strength, Low-Alloy Steel

Installation Notes
Installation Difficulty:
Skill Level 2 -
Intermediate
Installation Time: 3-4 hours
Installation Instructions Available
Parts Included
Front Coil Springs
Rear Coil Springs

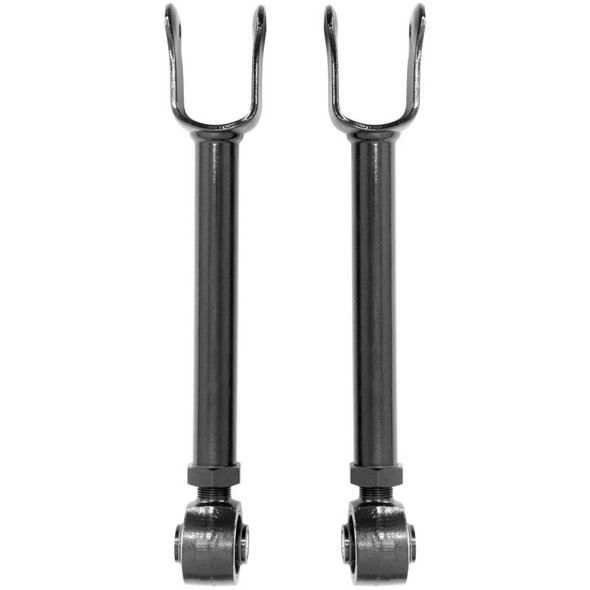

Front Lower Adjustable Control Arms
Rear Lower Adjustable Control Arms
Transfer Case Linkage Relocation Bracket
Transfer Case Lowering Kit
Rear Track Bar Bracket
Rear Bumpstop Spacers
Front Shocks (When Selected)
Rear Shocks (When Selected)
Installation Hardware
Warranty
Limited Lifetime Warranty

Specifications

• Features: Adjustable Control Arms, Short Arm
• Shocks Included: Without Shocks or With Shocks
• Max Tire Size: 33
• Lift Height Range: 0 - 2.5 inch
• Included Parts: Bump Stops, Coil Springs, Front Lower Control Arms, Front Upper Control Arms, Rear Lower Control Arms, Rear Upper Control Arms, Transfer Case Linkage, Transfer Case Lowering Kit

Fitment

• 2006 Jeep Wrangler (TJ)
• 2005 Jeep Wrangler (TJ)
• 2004 Jeep Wrangler (TJ)
• 2003 Jeep Wrangler (TJ)
• 2002 Jeep Wrangler (TJ)
• 2001 Jeep Wrangler (TJ)
• 2000 Jeep Wrangler (TJ)
• 1999 Jeep Wrangler (TJ)
• 1998 Jeep Wrangler (TJ)
• 1997 Jeep Wrangler (TJ)
• 2006 Jeep Wrangler Unlimited (LJ)
• 2005 Jeep Wrangler Unlimited (LJ)
• 2004 Jeep Wrangler Unlimited (LJ)
