Description

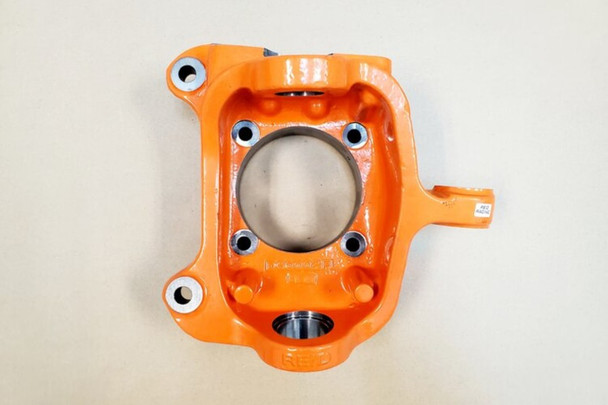

Reid Racing's high-steer Ford SuperDuty (2005-2012 F250 & F350) steering knuckle is designed as a heavy-duty stock-replacement passenger-side knuckle that provides additional options for installing aftermarket steering linkage. The primary improvements over the OEM knuckle include a flat-top pad for a bolt-on steering arm, dual steering stops, and increased overall strength. The additional steering options allow this axle to be more easily installed into other vehicles while ensuring proper steering geometry.
Uses OEM 2005-2012 SuperDuty ball joints, unit bearing, caliper, rotor, lockout hub, stub shaft, and U-joint. Ford changed the brakes and unit bearing on 2012.5 and later SuperDuties so newer trucks must convert to the earlier hardware in order to use the Reid Racing highsteer knuckle.
Flat-top pad measures 4.5 inches higher than the cast-in steering arm's top surface, and aftermarket steering arms of various heights can accommodate a wide range of suspension lifts.
Easy bolt-on installation with no machining required.
Antilock Brakes, Traction Control, Vacuum Hubs, and Electronic Stability Control systems are retained.
Cast from high-strength ductile iron and beefed up with extra material and ribbing.
Does not fit "Super 60" 10-lug axles (F450 & F550).
Cast-in steering arm is tapered from the top and bottom so the OEM steering linkage may be re-installed.
