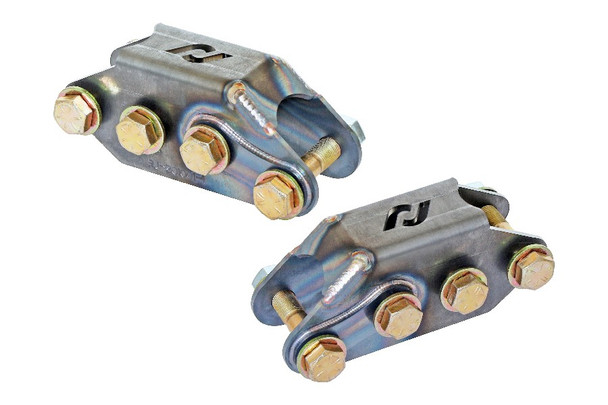

The RockJock Pre-Runner Chromoly Double Sheer End Link Bracket Kit is used in conjunction with our 35 spline Pre-Runner Antirock Sway Bar Arms.
These arms bolt to 3 holes on the end of our Pre-Runner Sway bar arms and then provide a fourth hole for mounting of your sway bar end link heim joint. If you end up trimming the length of the sway bar arms, make sure to leave 3 holes available so that you are able to use this easy to install kit.
Grade 8 hardware is included, but all heim joint, misalignment spacer and sway bar end link hardware is not included.
Kit Fits:
RockJock Pre-Runner Antirock Sway Bar Arms (RJ-202005-101) Kit Includes:
(2) Chromoly Double Sheer End Link Brackets (8) 1/2 in.-20 x 2 3/4 in. Long Grade 8 Bolts (16) 1/2 in. Grade 8 Flat Washers (8) 1/2 in.-20 Stover Nuts Notes:
Fitment - Fits RockJock Pre-Runner Antirock Arms only. Installation - These are custom vehicle builder parts. The Sway Bar Arms may require trimming and grinding for installation of these brackets. End Links - Again, being that these are custom vehicle builder parts, we do not offer vertical end links or their hardware to be used in conjunction with these brackets. Kit Includes:
Double Sheer End Link Bracket: RJ-201001-1 1/2 in.-20 x 2 3/4 in. Long Hex Bolt: CE-91257A744 1/2 in. Flat Washer: CE-H0014 1/2 in.-20 Stover Nut: CE-92501A440
Product Specifications
