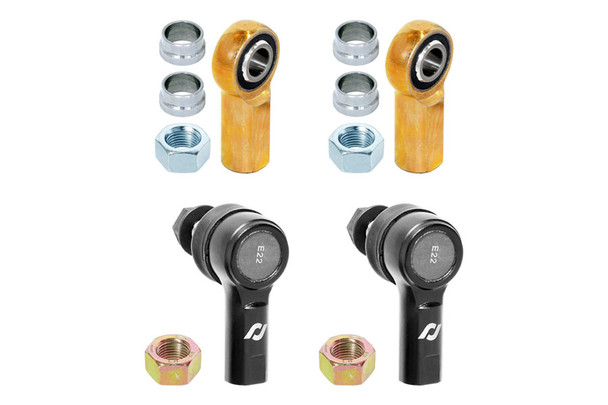

Sway Bar End Link Hardware Pack for JT Gladiator rear (w/o Antirock) includes 2 left hand thread sealed rod ends with locking nuts (connect to stock sway bar), 2 thru-bolt heim joints (for frame end of links), 4 heim joint misalignment spacers, 2 right hand and 2 left hand jam nuts.
Component Specs.:
Sealed Rod End Female Threads = 1/2 in.-20 LH Sealed Rod End Stud Threads = 12mm-1.75 Heim Joint Female Threads = 1/2 in.-20 RH Heim Joint Thru-Hole = 1/2 in. ID Misalignment Spacer = .515 in. ID x .690 in. OD x .238 in. tall Jam Nut Threads = 1/2 in.-20 RH/LH
Notes:
Threaded Stud Length: = 1in. (making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms) Wrench Flat: = 18mm wrench on sealed ends, 19mm wrench on heim joints
Parts List:
Sealed Rod End (LH thread) Thru-Bolt Heim Joint (RH thread) 1/2 in.-20 Jam Nut (RH thread) 1/2 in.-20 Jam Nut (LH thread) 1/2 in. ID Heim Misalignment Spacer
Product Specifications
- Location: Rear
- Quantity: 1 Kit
- Type: Hardware Kit
