Skyjacker 3.5-4in Dual Rate Long Travel Suspension System with Shocks for 07-18 Wrangler JK 4 Door

The 3.5-4in Suspension System with shocks for the Wrangler JKU 4 Door offers the versatility you've been looking for in a suspension. Superb on road feel and exceptional off-road control are achieved with Skyjacker’s Dual Rate Long Travel coil springs that are specifically designed for the Wrangler JKU 4 door. The Dual Rate Coil will expand during articulation when off road as the suspension drops to keep the tires in contact with the road longer than a single rate coil. The results of this are a much smoother and consistent ride. The system features extended sway bar end links that allow for full droop. The included bump stop extensions will make sure the suspension clears the tires at bump. With a choice of Black Max hydraulic twin tube full travel shocks or the gas charged Monotube design M95 series shocks both daily driven Jeep's and the more dedicated trail runners are both covered. Shocks lengths are fitted and will allow the maximum extension for full articulation. This system fits Wrangler JK 4 Door vehicles in any trim level package

Check out the optional AEV ProCAL Module, a great finishing touch to any lift kit as it can reprogram your vehicles computer compensating for gear ratio and tire size changes after lift kit installation not to mention many other additional features.

Many states have laws that limit the maximum height of a lifted vehicle. Never exceed the legal height limit.

Additional Details

Exceptional Performance In Any Terrain: The Skyjacker Suspension System for the Wrangler JK offers Dual Rate Coil Springs that are specifically designed for the Jeep, and give optimal performance in street driving or off road trail runs! The Coils Compress and expand depending on the terrain which will ensure superb handling on any terrain.

All Inclusive Kit: This Suspension system for the Wrangler Jk included all of the necessary components that will allow up to 4 inches of lift right out of the box. The dual rate springs, rear extended sway bar links, shocks, and more are all included to ensure a no hassle installation!

Two Advanced Shock Options Available: Black Max 8500 provide multi stage valving, larger fluid capacity for heat dissipation, twin tube construction, and advanced Foam-Cell technology in a Black finish with included black boot. The also available M95 Monotube shock has a Floating Piston with highly pressured Nitrogen charge for fast rebound and control and will not fade or lag under extreme situations. A large 46MM bore and chromed piston rod and are packaged in a Silver shock body.

Installation Notes
Installation Difficulty:
Skill Level 3 -
Advanced
2012-2018 JK/JKU models require Exhaust Spacers or other exhaust modification for proper driveshaft clearance.
Installation Time: 3-6 hours
Installation Instructions Available

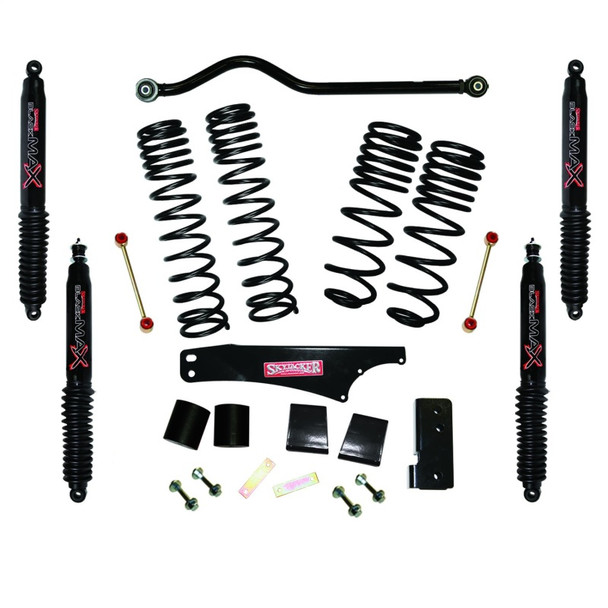

Parts Included
Front & Rear Dual Rate, Long Travel Coil Springs
Adjustable Front Track Bar
Rear Extended Sway Bar End Links
Front & Rear Bump Stop Extensions
Rear Track Bar Extension Bracket
Rear Track Bar Brace
Brake Line Brackets
Caster Cam Bolts
Front and rear Black MAX or Silver M95 long travel shocks
Grade 8 mounting hardware
Warranty
Limited Lifetime Warranty

Specifications

• Color: Black
• Features: Short Arm
• Shocks Included: With Shocks
• Max Tire Size: 37
• Lift Height Range: 3 - 4.5 inch
• Included Parts: Brake Line Extensions, Bump Stop Extensions, Cam Bolts, Coil Springs, Front Track Bar, Rear Track Bar Bracket, Sway Bar Endlinks

Fitment

• 2018 Jeep Wrangler Unlimited 4-Door (JK)
• 2017 Jeep Wrangler Unlimited 4-Door (JK)
• 2016 Jeep Wrangler Unlimited 4-Door (JK)
• 2015 Jeep Wrangler Unlimited 4-Door (JK)
• 2014 Jeep Wrangler Unlimited 4-Door (JK)
• 2013 Jeep Wrangler Unlimited 4-Door (JK)
• 2012 Jeep Wrangler Unlimited 4-Door (JK)
• 2011 Jeep Wrangler Unlimited 4-Door (JK)
• 2010 Jeep Wrangler Unlimited 4-Door (JK)
• 2009 Jeep Wrangler Unlimited 4-Door (JK)
• 2008 Jeep Wrangler Unlimited 4-Door (JK)
• 2007 Jeep Wrangler Unlimited 4-Door (JK)
