The SourceLT will save hours of wiring and installation time! It is a small, solid-state 6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories.
Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab, or tapping into the vehicle's electrical system. It's the perfect overall solution for all your aftermarket electrical accessories with options unmatched by anyone.
Features:

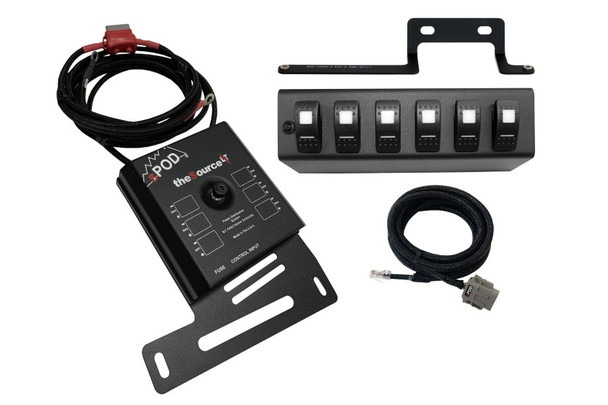

SourceLT w/ Blue LED Switch panel for JK 2009-2018 6 circuits rated at 30 amps at 12.5 VDC per circuit 12-position terminal block (easily attach accessories) Controller cable (10 feet) for simple plug-n-play connectivity to the switch controller Integrated low voltage cutoff (LVCO) battery protection w/ optional override Self-healing fault protection circuits (from 1.5 to 30amps) Current-sensing MOSFETs controlled by a microprocessor (no fuses and no relays) 50amp auto-resetting circuit breaker Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket Operates on 12VDC Built-in Bluetooth capabilities for remote control Protection against overheating, over-current, shorts, reverse polarity, and field collapse On-demand wireless software updates/upgrades Hardware:
Powder-coated steel base w/built-in hardware Silicone gasket for weatherproofing Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends Universal and vehicle-specific mounting options Robust insulated base and cover Features Available Through sPOD Mobile App (free):
Each switch can be programmed for:
Dimming Strobe Flash Momentary Switch Linking On-Road and Off-Road Modes of operation Switch Panel:
Switch panel with six dual-lit LED switches (installed and pre-wired) All wires are wrapped in high-temp abrasion-resistant nylon braided sleeving. It comes with a 10-foot control cable Aluminum panels are formed, welded and powder coated Carling Technologies Contura switches (certified to IP66/68 - marine/harsh environment) Controlled lower pilot light (push button) Custom laser-etched rockers are available (sold separately) Auto safe system shutdown when the panel is unplugged Bluetooth Requirements:
Access to iTunes or Google Play Store to download the sPOD app Bluetooth 4.0 compatible Compatible with Android devices running 8.0 Oreo (API 26) or later Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini Must have an existing sPOD system
Product Specifications
- Capacity: 6 Switches
- Color: Blue
- Includes Switches: Yes
- Installation Method: Thumb Screw Fastening
- Switch Illumination: Blue LED
- Type: Switch Panel
- Wiring Included: Yes
