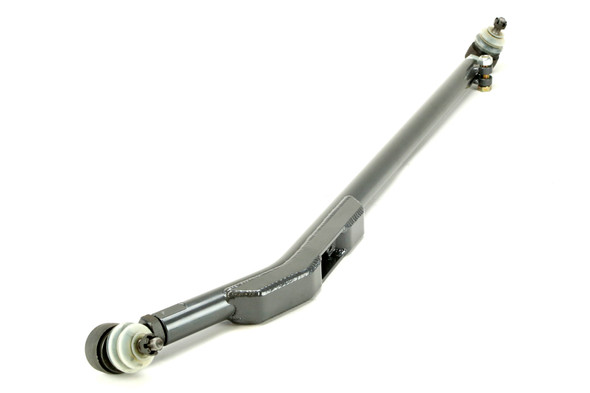

Tie Rod is made from 1-3/8" 4130 Chromoly and Heat Treated for maximum strength Comes with Synergy HD metal on metal tie rod ends, 4135-L and 4135-R Features LH and RH opposing threads to allow adjustment of tie rod length without removal from vehicle Abrasion-resistant powder coat finish for maximum durability and corrosion resistance IMPORTANT: Designed to be used with 8121-02 Drag Link only
Requirements and Fitment:
Wheel back spacing requirements:
15" wheel - max 3.75" 16" wheel - max 4.00" 17" wheel - max 4.50"
Minimum of 2" front bump stop spacers required Fits vehicles with 2-6" of lift 2-4" of lift, must use stock pitman arm 4.5"-6" of lift, must use drop pitman arm
Min/Max Lengths:
Measured in a straight line from zerk fitting to zerk fitting
Tie Rod - Max extended length: 43.750" Tie Rod - Min in collapsed length: 41.500" Drag Link - Max extended length: 39" Drag Link - Min collapsed length: 36.875"
Product Specifications
- Adjustable: Yes
- Color: Grey
- Ends Included: Yes
- Greaseable: Yes
- Heat Treated: Yes
- Material: Steel
- Quantity: 1
- Required Lift: 2-6in
- Size: 1 3/8in
