Description

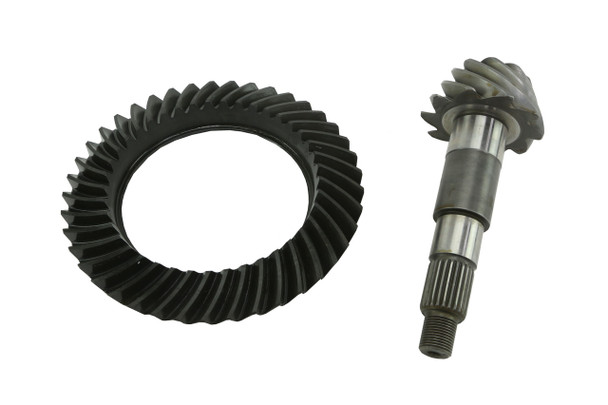

The Ten Factory D44-456JKF Pinion Set is available for the serious off-road enthusiast. Motive Gear is one of the leaders in gear and pinion technology due to the build quality of their products. Their gear sets are trusted by off-road enthusiasts in a world wide spectrum due to the delivery and performance.
Here are additional specs of the D44-456JKF set:
• 4.56:1 Ring and pinion ratio
• 24 Pinion spline count
• Standard ring gear rotation
• 41 Ring gear teeth
• 8.500” Ring gear diameter
• 1.376” Pinion shaft diameter
• 9 Pinion gear teeth
Product Specifications
- Axle Type: Dana 44
- Bearings Included: No
- Hardware Included: No
- Location: Front
- Material: 8620 Heat Treated
- Pinion Gear Teeth: 9
- Quantity: 1
- Ratio: 4.56
- Ring Gear Teeth: 41
- Spline Count: 24
Additional Information
Location: |
Front |
Spline Count: |
24 |
Ratio: |
4.56 |
Material: |
8620 Heat Treated |
Axle Type: |
Dana 44 |
