Description

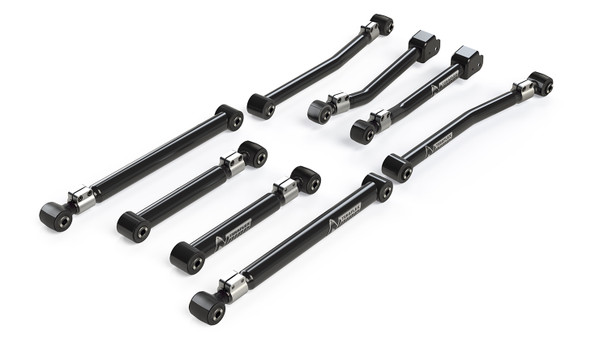

TeraFlex JT: Alpine Short Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0-4.5 Inch Lifts. Bolts to the factory control arm mounting brackets.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
Can be added to any existing suspension lift.
Includes:
- Alpine Short Arm Pairs:
- Arm Pair - Front Upper (# 1416520)
- Arm Pair - Front Lower (# 1416500)
- Arm Pair - Rear Upper (# 1417530)
- Arm Pair - Rear Lower (# 1417540)
Fitment:
- JT Gladiator (pickup)
Specs:
- Lift Height: 0-4.5 Inch
Control Arm Specs:
- JL / JT: Alpine Short Arm Pair - Front Upper (# 1416520):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 20.185 Inch
- Min. Length: 20 Inch
- Max. Length: 21 Inch
- Bolt - Both: 12mm
- Bushing - Axle: OEM
- Bushing - Frame: # 611014
- JL / JT: Alpine Short Arm Pair - Front Lower (# 1416500):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 24 Inch
- Min. Length: 24 Inch
- Max. Length: 25-1/4 Inch
- Bolt - Both: 16mm
- Bushing - Both: # 09-01-201-001
- JT: Alpine Short Arm Kit - Rear Upper (# 1417530):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 16-3/8 Inch
- Min. Length: 16-1/8 Inch
- Max. Length: 17-3/8 Inch
- Bolt - Both: 16mm
- Bushing - Both: # 09-01-201-001
- JT: Alpine Short Arm Kit - Rear Lower (# 1417540):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 23-3/4 Inch
- Min. Length: 23-1/2 Inch
- Max. Length: 24-3/4 Inch
- Bolt - Both: 16mm
- IR Bushing - Both: # 09-01-201-001
Additional Information
Features: |
Adjustable Control Arms |
Lift Height: |
0.00, 0.50, 1.00, 1.50, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50 |
Lift Height Range: |
0 - 4.5 inch |
Location: |
Front, Rear |
Upper/Lower: |
Lower Control Arms, Upper Control Arms |
Shipping Weight: |
69lb |
Shipping Dimensions: |
27in x 14in x 6in (L x W x H) |
Compatible Vehicle: |
Gladiator JT (2019-2026) |
