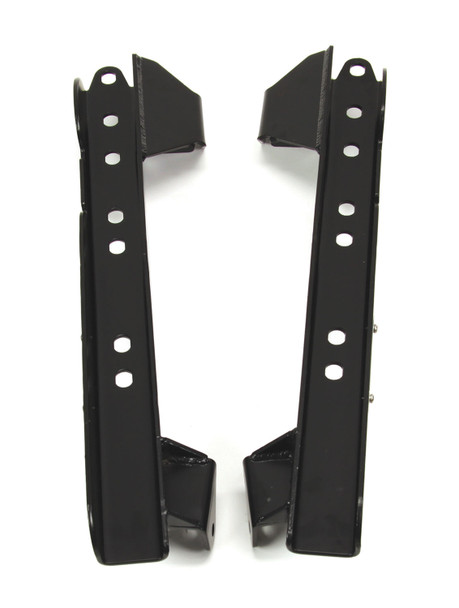

Teraflex LCG Lower Long Flexarm Frame Bracket

TeraFlex TJ: Lower LCG Long Arms (Not Included) and Lower LCG Long Arm Frame Brackets provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited models with 3-5 Inch Lifts.

CAD-engineered TeraFlex TJ: (Pro) LCG (4-Link) Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss (Not Included) are designed for maximum strength. The 1/4 Inch-thick steel brackets are CNC laser cut and precision bent for accurate fitment. Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Enduro LCG and/or Pro LCG Long Arm Suspension Systems.

By streamlining the frame-end mounting points, we were able to incorporate both front and rear mounts in the Lower LCG Long Arm Frame Brackets thus simplifying installation while maintaining a factory appearance.

MUST be used with adjustable Lower LCG Long Arms (TJ SWB: # 1447702 x 2) (LJ LWB: Front: # 1447702) (LJ LWB: Rear: # 1447704) - Not Included.
Can be added to an existing suspension lift.
Includes:

• LCG Long Arm Frame Bracket Kit - Lower:
• Frame Bracket - Lower Left
• Frame Bracket - Lower Right
• All necessary hardware

Fitment:

• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase)

Specs:

• Lift Height: 3-5 Inch
