Teraflex Rear Full-Float CRD60 HD Axle Features:
Upgrade your Jeep Wrangler JL Stock Axles

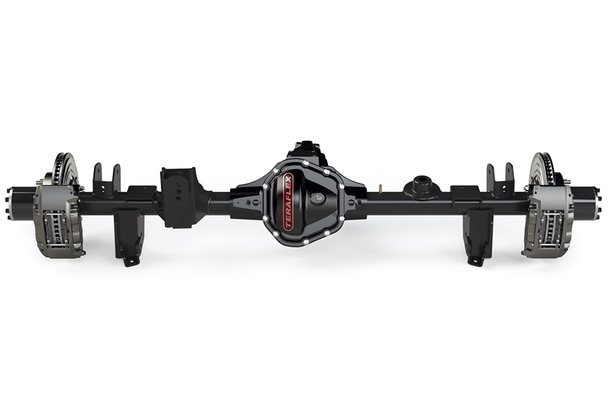

Get the ultimate in axle strength and ground clearance for your Jeep Wrangler JL/JLU Including Rubicon models with the 70" CRD60 HD Rear Axle w/ Full-Float & 5.38 R&P & ARB Locker (0-6" Lift) from Teraflex. Perfect for replacing bent broken or damaged axles and can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles. Axle housings feature smooth profile surfaces and axle tubes that come complete with all the necessary mount brackets and sensors. You also have the choice of pre-installed Super 60 ring & pinion gears, ARB air locker, and full-float outer axles as well as inner axle shafts, and sensors. The exclusive Constant Radius provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength. Get your Jeep looking tough and performing better today.
Includes:
Specs:
Note: Below is a list of Requirements & Recommendations as budget and build preference allow.
Optimize your setup by upgrading your steering system with our heavy-duty steering components. The factory steering system may also be reused.
HD Forged Drag Link Kit (0–6” Lift) (# 1863920).
HD Chromoly Tie Rod Kit (0–6” Lift) (# 1863910) — included in our Tera60 HD Front Axle Assemblies.
REQUIRES adjustable control arms for caster angle adjustments.
JL Options:
Long Control Arm & Bracket Kit – 8-Arm (3–6” Lift) (Alpine IR: JL2: # 1310512 or JL4: # 1310510) (Alpine: JL2: # 1316012 or JL4: # 1316010).
Short Control Arm Kit – 8-Arm (0–4.5” Lift) (Alpine IR: # 1416510 or Alpine: # 1416610).
Product Specifications
- Axle Style: Full Float
- Axle Type: Dana 60
- Bolt Pattern: 8x6.5
- Locking Hubs: Yes
- Ratio: 5.38
- Spline Count: 35
- Tubing Diameter: 3.25in
- Width: 70in
