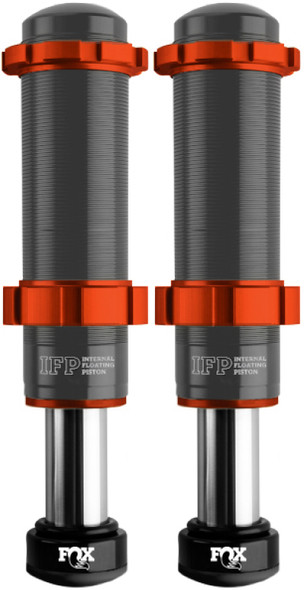

Fox Racing Shox Front 2.0 Performance Series IFP Shock for 07-18 Jeep Wrangler JK

The 2.0 Performance Series IFP smooth body shocks for Wrangler JK contain the latest in shock technology to transform the performance of your Jeep. They use race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find race-proven performance valving technology. The Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series IFP shock a predicable ride quality capable of handling the roughest road conditions. Optional Roost Shields give an awesome appearance and provide added shock shaft protection.

Additional Details

Body: 2.0" Metal impacted 6061-T6 aluminum will resist rust over time

Body Plating: Clear-anodized for a durable finish

Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen

Components: Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft: 5/8" hard chrome plated heat-treated alloy steel

Piston: Race-developed high-flow piston design

Valving: Application specific valving to maximize performance

Seals: Redundant sealing pack system main seal, wiper seal, scraper seal

Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings: Quiet nitrile rubber allows for increased suspension articulation

Mounting: Direct replacement for stock and aftermarket lifts kits

Options: Roost Shield

Installation Notes
Installation Difficulty:
Skill Level 2 -
Intermediate
Installation Time: 1-2 hours
Parts Included
Warranty
Limited Lifetime Manufacturer Warranty (subject to manufacturer's terms and exclusions) .

Specifications

• Color: Silver
• Features: Hydraulic Internal Floating Piston, Monotube, Nitrogen Charged
• Location: Front
• Fits Lift Heights: 0.00, 0.25, 0.50, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00 or 1.50, 1.75, 2.00, 2.25, 2.50, 2.75, 3.00, 3.25, 3.50 or 4.00, 4.25, 4.50, 4.75, 5.00, 5.25, 5.50, 5.75, 6.00
• Lift Range: 0 - 2.5 inch or 0 - 2.5 inch, 3 - 4.5 inch or 3 - 4.5 inch, 5 inch and up
• Front Collapsed Length: 14.350" or 15.550" or 17.150"
• Front Extended Length: 22.950" or 25.150" or 28.250"
• Front Travel: 8.60" or 9.60" or 11.10"
• Shock Valving: Universal
• Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.

Fitment

• 2018 Jeep Wrangler 2-Door (JK)
• 2017 Jeep Wrangler 2-Door (JK)
• 2016 Jeep Wrangler 2-Door (JK)
• 2015 Jeep Wrangler 2-Door (JK)
• 2014 Jeep Wrangler 2-Door (JK)
• 2013 Jeep Wrangler 2-Door (JK)
• 2012 Jeep Wrangler 2-Door (JK)
• 2011 Jeep Wrangler 2-Door (JK)
• 2010 Jeep Wrangler 2-Door (JK)
• 2009 Jeep Wrangler 2-Door (JK)
• 2008 Jeep Wrangler 2-Door (JK)
• 2007 Jeep Wrangler 2-Door (JK)
• 2018 Jeep Wrangler Unlimited 4-Door (JK)
• 2017 Jeep Wrangler Unlimited 4-Door (JK)
• 2016 Jeep Wrangler Unlimited 4-Door (JK)
• 2015 Jeep Wrangler Unlimited 4-Door (JK)
• 2014 Jeep Wrangler Unlimited 4-Door (JK)
• 2013 Jeep Wrangler Unlimited 4-Door (JK)
• 2012 Jeep Wrangler Unlimited 4-Door (JK)
• 2011 Jeep Wrangler Unlimited 4-Door (JK)
• 2010 Jeep Wrangler Unlimited 4-Door (JK)
• 2009 Jeep Wrangler Unlimited 4-Door (JK)
• 2008 Jeep Wrangler Unlimited 4-Door (JK)
• 2007 Jeep Wrangler Unlimited 4-Door (JK)
