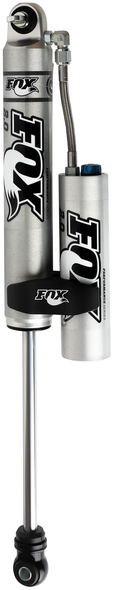

Fox Racing Shox Rear 2.0 Performance Series Remote Reservoir Shock for 07-18 Jeep Wrangler JK

The aluminum bodied 2.0 Performance Series Reservoir smooth body shock for your Wrangler JK delivers FOX's industry leading performance in an affordable, hassle-free bolt on package. The heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering a race style look. To compliment the racing look a CNC machined, 6061-T6 aluminum black anodized reservoir mounting clamp is included. The high flow damping piston matched with application specific valving gives the 2.0 Performance Series Reservoir shock predicable ride quality capable of handling the roughest on and off road conditions. Shocks are also available with a Dual Speed Compression adjustment knob for the most perfect suspension tuning and ride quality control.

Additional Details

Body: 2.0" Metal impacted 6061-T6 aluminum will resist rust over time

Body Plating: Clear-anodized for a durable finish

External Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized

Components: Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft: 5/8" hard chrome plated heat-treated alloy steel

Piston: Race-developed high-flow piston design

Seals: Redundant sealing pack system main seal, wiper seal, scraper seal

Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings: Quiet nitrile rubber allows for increased suspension articulation

Mounting: Direct replacement for stock and aftermarket lifts kits

Options: Dual Speed Compression Damping (CD) Adjustment

Installation Notes
Installation Difficulty:
Skill Level 2 -
Intermediate
Installation Time: 1-2 hours
Parts Included
Warranty
Limited Lifetime Warranty

Specifications

• Color: Silver
• Features: Monotube, Nitrogen Charged, Remote Reservior
• Location: Rear
• Fits Lift Heights: 1.50, 1.75, 2.00, 2.25, 2.50, 2.75, 3.00, 3.25, 3.50 or 2.50, 2.75, 3.00, 3.25, 3.50, 3.75, 4.00 or 4.00, 4.25, 4.50, 4.75, 5.00, 5.25, 5.50, 5.75, 6.00 or 6.50, 6.75, 7.00, 7.25, 7.50, 7.75, 8.00
• Lift Range: 0 - 2.5 inch, 3 - 4.5 inch or 3 - 4.5 inch, 5 inch and up or 5 inch and up
• Rear Collapsed Length: 14.850 or 15.850 or 16.850 or 19.850
• Rear Extended Length: 24.450 or 25.950 or 28.450 or 33.950
• Rear Travel: 9.60 or 10.10 or 11.60 or 14.10
• Shock Valving: Adjustable or Universal
• Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.

Fitment

• 2018 Jeep Wrangler 2-Door (JK)
• 2017 Jeep Wrangler 2-Door (JK)
• 2016 Jeep Wrangler 2-Door (JK)
• 2015 Jeep Wrangler 2-Door (JK)
• 2014 Jeep Wrangler 2-Door (JK)
• 2013 Jeep Wrangler 2-Door (JK)
• 2012 Jeep Wrangler 2-Door (JK)
• 2011 Jeep Wrangler 2-Door (JK)
• 2010 Jeep Wrangler 2-Door (JK)
• 2009 Jeep Wrangler 2-Door (JK)
• 2008 Jeep Wrangler 2-Door (JK)
• 2007 Jeep Wrangler 2-Door (JK)
• 2018 Jeep Wrangler Unlimited 4-Door (JK)
• 2017 Jeep Wrangler Unlimited 4-Door (JK)
• 2016 Jeep Wrangler Unlimited 4-Door (JK)
• 2015 Jeep Wrangler Unlimited 4-Door (JK)
• 2014 Jeep Wrangler Unlimited 4-Door (JK)
• 2013 Jeep Wrangler Unlimited 4-Door (JK)
• 2012 Jeep Wrangler Unlimited 4-Door (JK)
• 2011 Jeep Wrangler Unlimited 4-Door (JK)
• 2010 Jeep Wrangler Unlimited 4-Door (JK)
• 2009 Jeep Wrangler Unlimited 4-Door (JK)
• 2008 Jeep Wrangler Unlimited 4-Door (JK)
• 2007 Jeep Wrangler Unlimited 4-Door (JK)
