Jeep Gladiator Wheel Fitment Guide
Bolt pattern, offset, backspacing, center bore, and the wheel sizes that fit your Jeep Gladiator stock and lifted, backed by 64 real Gladiator builds.
Quick Answer
The Jeep Gladiator uses a 5x5 (5x127 mm) bolt pattern, a 71.5 mm center bore and M14x1.5 lug nuts torqued to 130 ft-lb. Factory wheels are 17x7.5 with a +44 offset. For 35 and 37 inch tires, the most popular wheel is a 17x9 with a -12 offset: 11 of 13 Gladiator builds on that setup reported no rubbing.
Table of Contents
- What You Need to Know First
- Which Option Is Right for You?
- Wheel Size and Offset: Real Build Data
- How Wheel Fitment Works
- Supporting Parts You May Need
- Fitment Considerations
- Common Mistakes
- Recommended Setup Paths
- Shop Related Parts
- Frequently Asked Questions
- Related Guides
- Sources & Technical References
1. What You Need to Know First
| Spec | Jeep Gladiator JT (2020+) |
|---|---|
| Bolt pattern | 5x5 in (5x127 mm) |
| Center bore | 71.5 mm |
| Lug thread | M14x1.5 |
| Lug nut torque | 130 ft-lb |
| Factory wheel | 17x7.5, +44.45 mm offset (most trims); 18 and 20 in on some trims |
Factory Gladiator wheels have a high positive offset that tucks the tire in toward the frame. That's fine for factory tires, but larger tires need the wheel pushed out so they clear the control arms and frame at full steering lock. That's why almost every aftermarket Gladiator wheel uses a lower or negative offset.
2. Which Option Is Right for You?
Your best wheel depends on the tires you run and the look you want.
3. Wheel Size and Offset: Real Build Data
The most common wheel setups across 64 owner-reported Jeep Gladiator builds (2020 to 2025). Backspacing is calculated from width and offset. "Rubbed" includes slight rubbing at full steering lock, which usually comes from tire size and lift height more than the wheel.
| Wheel | Offset (mm) | Backspacing | Builds | Tire Sizes Run | Result |
|---|---|---|---|---|---|
| Factory 17x7.5 | +44 | about 6.0 in | – | Factory tires | Tucks the tire in; too far in for most 35s |

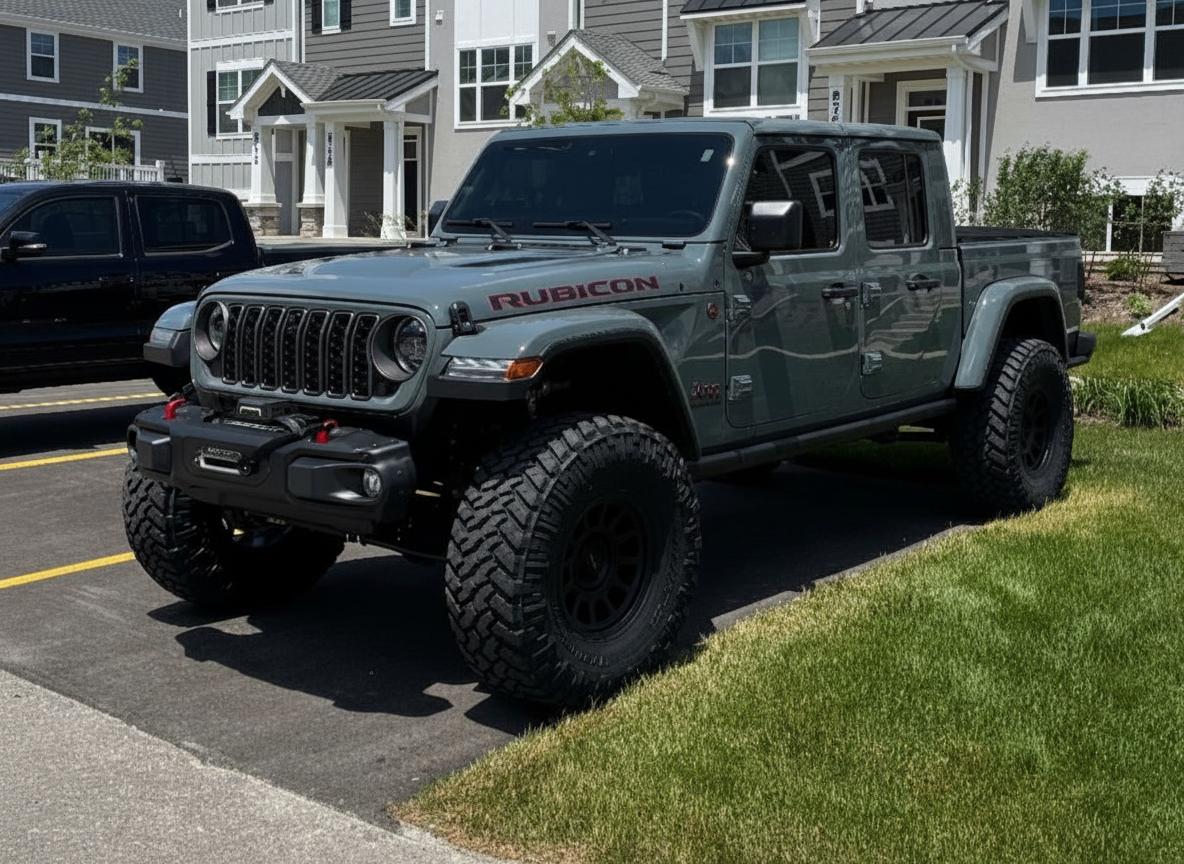

| 17x8.5 | 0 | about 4.8 in | 7 | 33 in, 35 in, 37 in, 38 in and up | 1 of 7 rubbed |
| 17x8.5 | -6 | about 4.5 in | 7 | 35 in, 37 in | 1 of 7 rubbed |

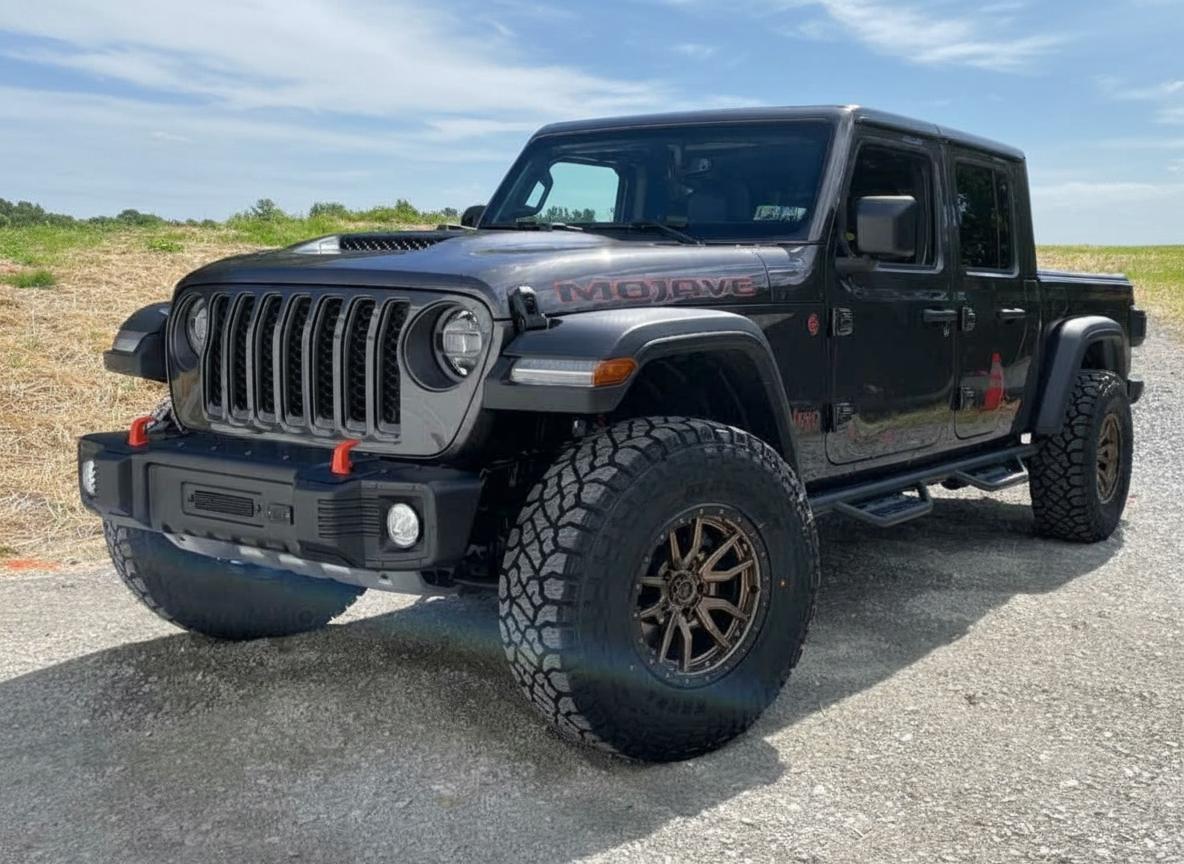

| 17x9 | -12 | about 4.5 in | 13 | 35 in, 37 in, 38 in and up | 2 of 13 rubbed |

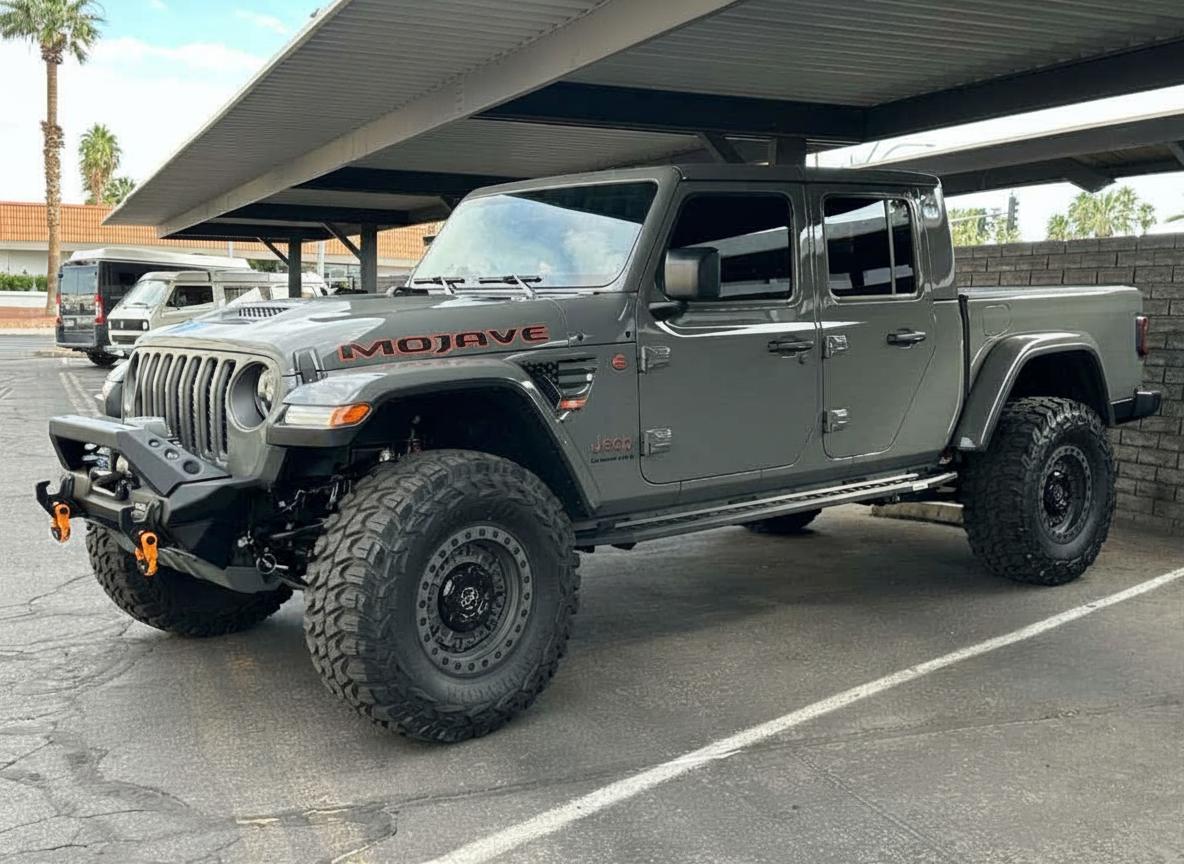

| 17x9.5 | -18 | about 4.5 in | 4 | 37 in, 38 in and up | 2 of 4 rubbed |

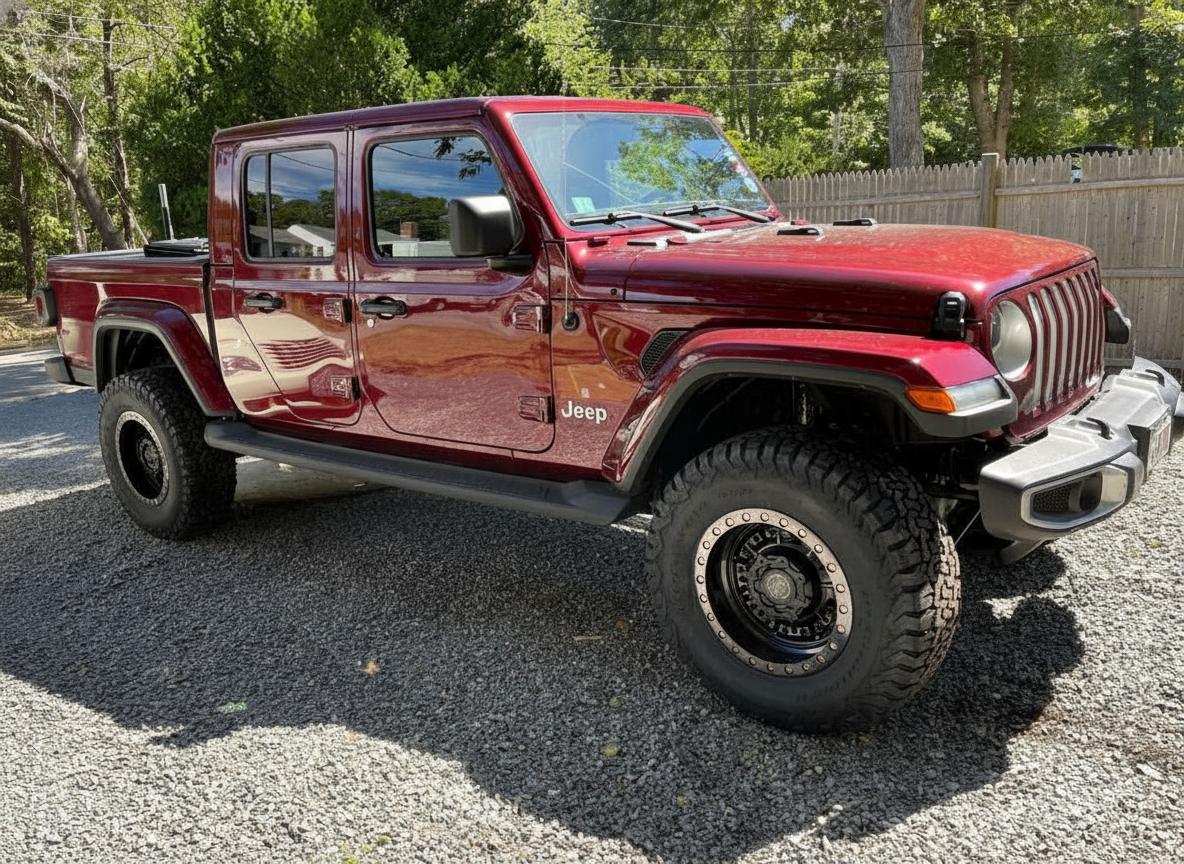

| 18x9.5 | -18 | about 4.5 in | 4 | 35 in, 37 in | No rubbing reported |

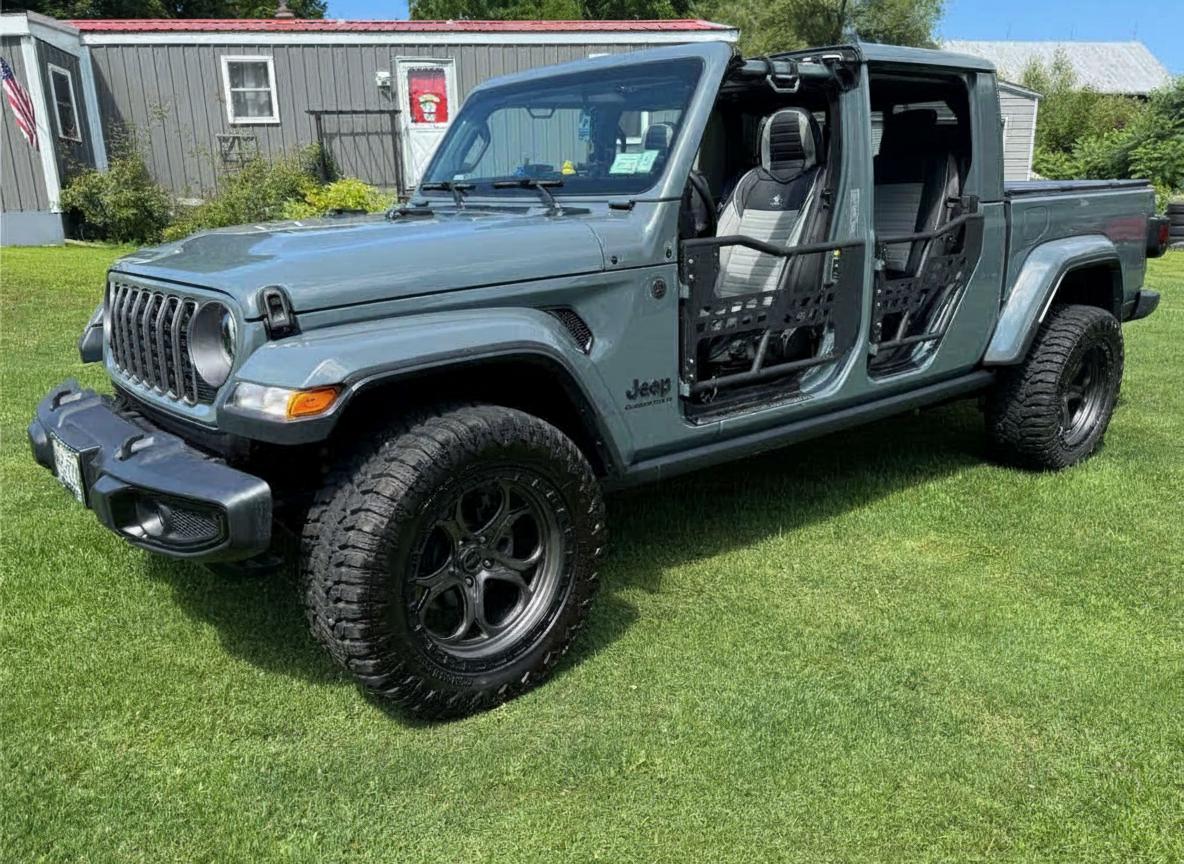

| 20x10 | -18 | about 4.8 in | 3 | 35 in, 38 in and up | No rubbing reported |
| 22x12 | -51 | about 4.5 in | 3 | 33 in, 35 in | 1 of 3 rubbed |
44 of 64 builds run 17 in wheels, and 39 run 8.5 or 9 in widths. Moving from the factory wheel to a typical aftermarket wheel brings backspacing from about 6 in down to about 4.5 in, which pushes each tire roughly 1.5 in further out.
4. How Wheel Fitment Works
A wheel has to match the hub, clear the brakes and suspension, and place the tire where it won't rub. Five measurements decide that.
Bolt Pattern
The Gladiator's 5x5 pattern means five lugs on a 5 inch (127 mm) circle. The Wrangler JL uses the same pattern, so JL wheels fit. Older JK wheels share the pattern too, but check offset and center bore before reusing them.
Offset & Backspacing
Offset is the distance in millimeters from the wheel's centerline to its mounting face. Positive offset tucks the wheel in; negative pushes it out. Backspacing measures the same thing in inches from the back edge of the wheel. For the Gladiator, about 4.5 in of backspacing is the sweet spot for 35s and 37s.
Center Bore
The Gladiator's hub is 71.5 mm. A wheel with a matching bore centers itself on the hub. A wheel with a larger bore needs a hub centric ring so it doesn't center on the lug nuts alone, which can cause vibration.
Lug Nuts
The Gladiator uses M14x1.5 lug nuts torqued to 130 ft-lb. Aftermarket wheels often need lug nuts with a different seat than factory, so use the type the wheel maker specifies, and re-torque after the first 50 to 100 miles.
Load Rating
The Gladiator carries payload and tows, so the wheel's load rating matters. Choose a wheel rated for your loaded axle weight, especially with a bed full of gear or a camper.
5. Supporting Parts You May Need
A wheel swap usually needs a few small parts to finish the job right.
6. Fitment Considerations
- Offset and tire width work together. A 13.50 in wide tire needs more clearance at full lock than a 12.50 in wide one on the same wheel.
- Lower offset sticks out further. Offsets of -25 and below push the tire past the fenders; plan on wider flares if you want coverage.
- Bigger wheels mean shorter sidewalls. 20 in and up look great on the street but give up sidewall for airing down off road.
- Keep your spare matching. A full-size spare on the same wheel keeps the rotation even.
7. Common Mistakes
- Reusing factory lug nuts on aftermarket wheels. If the seat type doesn't match, the wheel won't clamp correctly.
- Ignoring center bore. A larger bore without hub centric rings can cause vibration at highway speed.
- Choosing offset for looks alone. Very low offsets add leverage on wheel bearings and push tires into the fenders at full flex.
- Forgetting TPMS. New wheels without sensors leave the warning light on.
8. Recommended Setup Paths
35s, any trim
- 17x8.5 or 17x9 wheels
- 0 to -12 offset
- 35 in tires plus 2.5 in lift on Sport and Willys
37s, Rubicon or Mojave
- 17x9 wheels
- -12 offset
- 37 in tires plus TeraFlex leveling kit
Street / Show
- 20 or 22 in wheels
- -18 to -51 offset
- 33 to 35 in tires, wider fender flares
9. Shop Related Parts
10. Frequently Asked Questions
What is the Jeep Gladiator bolt pattern?
The Jeep Gladiator JT (2020 and newer) uses a 5x5 inch bolt pattern, also written 5x127 mm, with a 71.5 mm center bore.
What size lug nuts does a Jeep Gladiator use, and what is the torque spec?
The Gladiator uses M14x1.5 lug nuts torqued to 130 ft-lb. Check that aftermarket lug nuts match your wheel's seat type, and re-torque after the first 50 to 100 miles.
What offset wheels fit a Jeep Gladiator with 35s or 37s?
The most common setup in 64 Gladiator builds is a 17x9 wheel with a -12 offset, used on 13 builds; 11 of them reported no rubbing on 35 and 37 inch tires. Most builds run offsets between 0 and -18.
Do Jeep Wrangler JL wheels fit a Gladiator?
Yes. The Wrangler JL and Gladiator JT share the same 5x5 bolt pattern, 71.5 mm center bore and M14x1.5 lug thread, so JL wheels bolt on. Check load rating if you carry heavy payloads.
Can I run 20 or 22 inch wheels on a Gladiator?
Yes. Our build data includes Gladiators on 18, 20, 22 and even 24 inch wheels, though 44 of 64 builds stay on 17s because they allow a taller, softer sidewall for off-road use.
Do I need hub centric rings on my Gladiator?
Only if the wheel's center bore is larger than the Gladiator's 71.5 mm hub. A hub centric ring fills the gap so the wheel centers on the hub instead of the lug nuts, which prevents vibration.
11. Related Guides
12. Sources & Technical References
- Bolt pattern, center bore and lug thread: Wheel-Size.com, Jeep Gladiator lug nut and hub specs
- Factory wheel (OEM part 5VH22RXFAA, 17x7.5, 44.45 mm offset, fits Gladiator and Wrangler): AllOEMRims.com
- Lug nut torque (130 ft-lb, per the owner's manual): JeepGladiatorForum.com owner discussion
- Build data: 64 owner-reported Jeep Gladiator wheel and tire builds, 2020 to 2025 model years, compiled by Offroad Source.
