Description

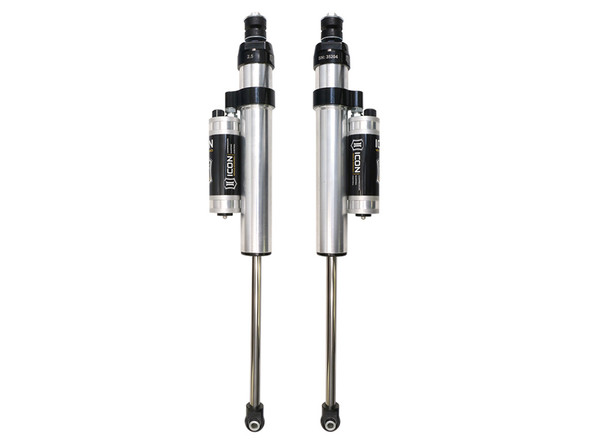

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
Features and Benefits:- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100 Percent Rebuildable
- 100 Percent Revalveable
- Adjustable: Yes
- Attributed Description: Icon Vehicle Dynamics; Shock Absorber Set; Adjustable: Yes; Boot Included: No; Bore Diameter: 2.25 In; Compressed Length: 15.85 In; Fully Open Length: 26.18 In; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder Of Stem; Shock Absorber Rod End Measuring Point: Center Of Eyelet; Stroke Length Front: 10.3 In; Tube Outside Diameter: 2.50 In; Upper Mount Type: Stem; External Reservoir: Yes
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 257340 - 7/8 Shaft 14.25 Oal, 10.00 Travel, 252003 - Seal Install Tool 2.5/3.0, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 611007 - 9/16 Medium Duty Stem Bushing Kit
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder Of Stem
- Shock Absorber Rod End Measuring Point: Center Of Eyelet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Stem
- Add On Part: 252012 - -4 To -10 Hose Shield Kit
Specifications:
- Country of Origin: USA
- Sold As: Each
- Travel/Length: 10.00 inch
- Warranty: 1 Year
Vehicle Fitment
- 2007-2017 Jeep Wrangler
- 2018 Jeep Wrangler JK
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Videos
View AllCloseAdditional Information
Subcategory: |
Shocks |
Adjustable: |
Yes |
Boot Included: |
NO |
Bore Diameter: |
2.25 in |
Cylinder Material: |
Aluminum |
Lower Mount Type: |
EYELET |
Damping Type: |
Oil |
Cylinder Color: |
Silver |
Mounting Hardware Included: |
Yes |
Gas Charged: |
Yes |
California Prop 65 Warning: |
Yes |
External Reservoir: |
Yes |
Service Parts: |
252003 - SEAL INSTALL TOOL 2.5/3.0 |
Shaft Diameter: |
0.875 in |
Shaft Material: |
Chrome |
Shock Absorber Body End Measuring Point: |
Shoulder of Stem |
Shock Absorber Rod End Measuring Point: |
CENTER OF EYELET |
Tube Outside Diameter: |
2.5 in |
Upper Mount Type: |
Stem |
Product Type: |
Shock |
Shock Brand: |
ICON |
Last Updated: |
11/3/2026 |
Shock Position: |
Front |
Shock Position: |
Rear |
Quantity: |
Pair (2) |
Lift Height: |
4.5-6" |
Shock Type: |
Monotube |
Reservoir Type: |
Remote Reservoir |
Adjustable Damping: |
Yes |
Spring Included: |
No |
Load Rating: |
Standard Load |
