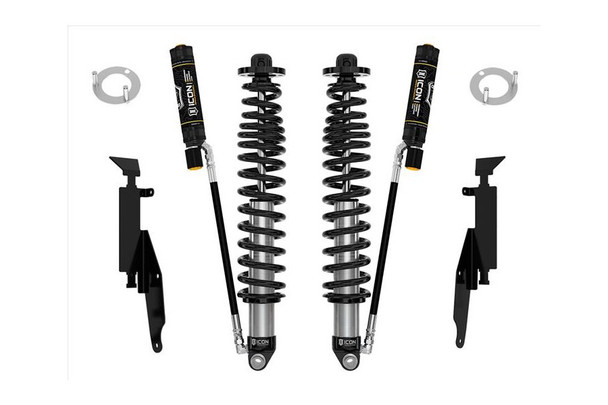

Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E

Write a Review
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
    As low as
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
  • Icon Vehicle Dynamics 2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV | 48710E
$3,015.99
  • Extra Savings Applied in Cart
free-shirt
free-shipping
SKU: ico48710E MPN: 48710E
Lease to own Pay as low as $/week

Fitment Guaranteed

We verify fitment for your vehicle

Fast Shipping

Multiple Delivery Options Available at Checkout

No Credit Required Pricing

Financing options available at checkout.

Questions? Call or Text 419-670-3141

Real experts. Real answers.

Real Enthusiast Support

We're Jeep & off-road experts, here to help

  • Check Mark FREE SHIPPING & DELIVERY

    Shipping & Delivery Information

    Shipping Information
    We offer free shipping for non freight or oversized items. Orders are processed within 24–48 business hours.
    Freight Charges
    Freight is free on selected products. Oversized items may have additional charges.
    Lead Time
    Standard delivery time is 1–3 working days. Remote areas may take longer.
    Delivery Policy
    Two delivery attempts are made. Returned orders may require re-shipping charges.
  • Check Mark FITMENT GUARANTEED
  • Check Mark NO CREDIT NEEDED FINANCING
  • Check Mark QUESTIONS OR HELP NEEDED? CALL OUR EXPERTS AT 419-670-3141
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
Frequently bought together:

Free Shipping

On orders over $250*

Secure Checkout

Safe & encrypted

$

Price Match

We'll match eligible prices

Expert Fitment Support

Get it right the first time

Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3 Inch of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25 Inch of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock.

Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These rear coilovers feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance.

Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Features and Benefits:
  • Increased wheel travel (up to 14 Inch) and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • Adjustable up to 2-3 Inch of rear lift height on non-Sasquatch or 1.25-2.25 Inch of rear lift on Sasquatch Broncos
  • Unique ICON engineered triple rate coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
  • 100 Percent Bolt-on - no drilling, cutting or welding necessary for installation
Details
  • Material: Aluminum, Steel
  • Active Or Passive Suspension: Active
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 18.54
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Adjustment Type: Electronic
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 29.21
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3.0 Inch
  • Maximum Ride Height Raising Distance: 3.0
  • Minimum Lift: 1.25 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Rear Spring Rate: 167, 195, 250
  • Recommended Aftermarket Tires: (Without Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers), (With Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers)
  • Recommended Aftermarket Wheels: (With Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 20x9 Inch W/ 5.00 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 18x9 Inch W/ 5.00 Inch Backspace / 0mm Offset
  • Remote Reservoir: Yes
  • Reservoir Style: Remote
  • Self Leveling: No
  • Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Center Of Eylet
  • Shock Absorber Rod End Measuring Point: Top Of Mounting Plate
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Progressive Triple Rate
  • Travel Length: 10.67
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 252012 - -4 To -10 Hose Shield Kit, 44200T - 21-23 Bronco Rear Adj Track Bar Kit, 43501 - 21-23 Bronco Iic Install Kit, 48700E - 21-23 Bronco Front 2.5 VS RR CDEV Coilover Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 611074 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 3/8 Inch Tall, 611072 - 21-23 Bronco Hose Route Kit OEM Rear Link 1.9 Inch, 611073 - 21-23 Bronco Hose Route Kit Rear Link 1.75 Inch, 198001 - Billet Spanner Wrench Kit

Specifications:

  • Country of Origin: USA
  • Sold As: Kit
  • Location: Rear
  • Extended Length: 29.21 inch
  • Material: Aluminum, Steel
  • Warranty: 1 Year-Shocks, Limited Lifetime-Coil Springs
  • Lift Height: 1.25-3 Inch

Vehicle Fitment

  • 2021-2023 Ford Bronco
