Description

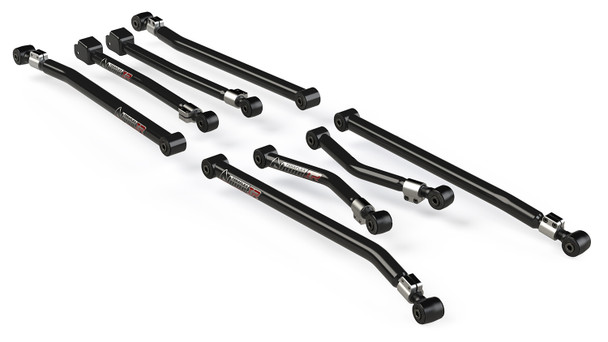

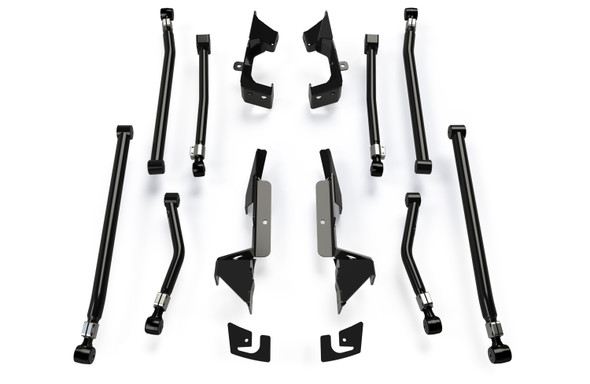

TeraFlex JK: Alpine IR Long Arms and Long Arm Brackets (Not Included) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts.
Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance.
MUST be used with Long Arm Bracket Kit (# 1957000) - Not Included. Can be added to any existing suspension lift.
Includes:
- Alpine IR Long Arm Pairs:
- Arm Pair - Front Upper (# 1315570)
- Arm Pair - Front Lower (# 1315580)
- Arm Pair - Rear Upper (# 1315590)
- Arm Pair - Rear Lower (# 1315600)
Fitment:
- JK Wrangler (2-door)
- JK Wrangler Unlimited (4-door)
Specs:
- Lift Height: 3-6 Inch
Control Arm Specs:
- JK: Alpine IR Long Arm Pair - Front Upper (# 1315570):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 18-3/4 Inch
- Min. Length: 27-3/8 Inch
- Max. Length: 28-7/8 Inch
- Bolt - Axle: 12mm
- Bolt - Frame: 14mm
- IR Bushing - Axle: OEM
- IR Bushing - Frame: 611019
- JK: Alpine IR Long Arm Pair - Front Lower (# 1315580):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 22-5/8 Inch
- Min. Length: 33-3/4 Inch
- Max. Length: 35-1/4 Inch
- Bolt - Both: 14mm
- IR Bushing - Both: 611015
- JK: Alpine IR Long Arm Pair - Rear Upper (# 1315590):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 17-7/16 Inch
- Min. Length: 20 Inch
- Max. Length: 21-1/2 Inch
- Bolt - Both: 14mm
- IR Bushing - Both: 611016
- JK: Alpine IR Long Arm Pair - Rear Lower (# 1315600):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 19-3/4 Inch
- Min. Length: 35-3/4 Inch
- Max. Length: 37-1/4 Inch
- Bolt - Both: 14mm
- IR Bushing - Both: 611015
Specifications:
- Country of Origin: USA
- Sold As: Kit
- Series: Alpine
- Lift Height: 3-6 Inch
Vehicle Fitment
- 2007-2017 Jeep Wrangler
- 2018 Jeep Wrangler JK
Installation Instructions (PDF)
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Additional Information
Subcategory: |
Body Lift Kits |
Instructions: |
https://www.asapnetwork.org/sites/default/files/fnnt/installation/5d7a7c3265783900841bcc7c_0.pdf |
Kit: |
Yes |
Product Type: |
Control Arm |
Last Updated: |
11/3/2026 |
Lift Height: |
4.5-6" |
Lift Type: |
Spring Lift |
Engine Type: |
Gas |
Drive Type: |
4WD |
Adjustable Height: |
Yes |
Spring Type: |
Coil Spring |
Load Capacity: |
Standard Duty |
