TeraFlex Dana 30/44 High Steer System 4-6in Lift

The TeraFlex TJ: Pro LCG Dana 30/44 High Steer System addresses many front-end steering issues associated with lifted TJ Wrangler/Unlimited models.

This system beefs up the steering components of the Dana 30 or Rubicon Dana 44 front axle, helps maximize ground clearance, and corrects steering geometry for superior highway drivability.
Highly Recommended for TJ Wrangler/Unlimited models with 4 Inch or more lift.

Not an all-inclusive kit - may Require additional modifications. Also fits ZJ Grand Cherokee, XJ Cherokee, and MJ Comanche with Dana 30 front axles - RequireS additional modifications.

The High Steer HD Aluminum Tie Rod and High Steer HD Aluminum Drag Link converts the TJ's stock steering to a cross steering or a flipped steering setup. Flipping the HD Drag Link over the Knuckle helps eliminate front-end shimmy, bump steer, and other alignment issues.

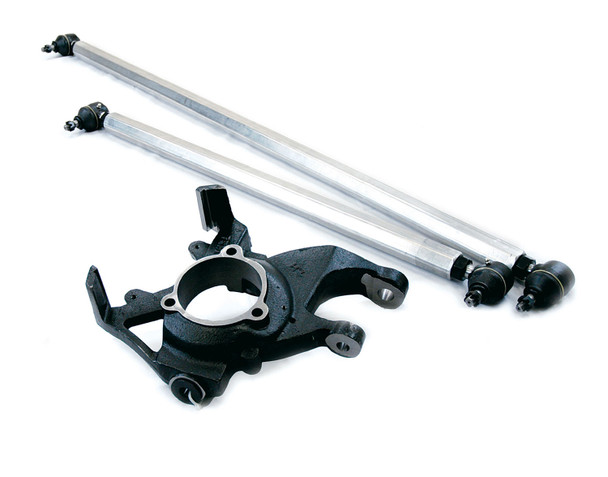

This High Steer System (# 1813000) combines our High Steer Knuckle (# 4828490) with our High Steer HD Aluminum Tie Rod Kit (# 4920251), High Steer HD Aluminum Drag Link Kit (# 4920244). Most replacement components available separately.

Does Not include High Steer Sway Bar Mount Kit (# 4959100), 9550 VSS Steering Stabilizer Mount Kit (# 1510090), or Front Sway Bar Quick Disconnect Kit (# 1743092).

We also Recommend our Front High Steer HD Adjustable Track Bar & Bracket Kit (# 4923200 - Not Included) and Drop Pitman Arm (# 1922133 - Not Included).
Compatible with all factory and aftermarket axle shafts, ball joints, and wheel hubs. Does Not affect operation of ABS.
Includes:

• High Steer Knuckle w/ 3 Tapered Inserts (# 4828490):
• High Steer Knuckle
• Tie Rod/Drag Link Stock Tapered Insert Sleeve (0.75 Inch O.D.) (# 990175) x 2
• Tie Rod/Drag Link Stock Tapered Insert Sleeve (0.875 Inch O.D.) (# 990113)
• High Steer HD Aluminum Tie Rod Kit (# 4920251):
• High Steer HD Aluminum Tie Rod
• Tie Rod End - Offset Stock Taper - 7/8 Inch-18 (L.H. Thread) (# 4920231)
• Tie Rod End - Offset Stock Taper - 7/8 Inch-18 (R.H. Thread) (# 4920232)
• Boot (Tie Rod End or Drag Link End) (# 4925100) x 2
• High Steer HD Aluminum Drag Link Kit (# 4920244):
• High Steer HD Aluminum Drag Link
• Drag Link End - Stock Taper - 7/8 Inch-18 (L.H. Thread) (# 4920221)
• Drag Link End - Stock Taper - 7/8 Inch-18 (R.H. Thread) (# 4920222)
• Boot (Tie Rod End or Drag Link End) (# 4925100) x 2

Fitment Vehicle(s):

• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase)
• ZJ Grand Cherokee
• XJ Cherokee
• MJ Comanche

Axle(s):

• Dana 30 front axle
• Rubicon Dana 44 front axle

Specs:

• Lift Height: 4-6 Inch
• Lift Kit: 4-6 Inch Long Arm Suspension System
