Description

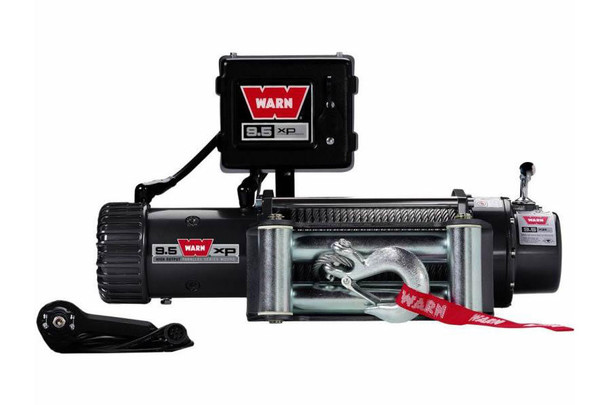

The WARN 68500 9.5XP Self-Recovery Winch has been designed to be a high-performance winch designed to be fast, powerful, while delivering in extreme conditions. This winch has a 9500LB pulling capacity, and utilizes a high output parallel series wound motor which is considered to be one of the strongest in the industry. The motor also contains a 3-stage planetary gear train which has also been proven to be one of the most durable in the industry. This winch also comes with a remote mounted control box which provides the user with plenty of mounting options, and a remote control with a 12-foot lead will be included to allow for easy and convenient operation.
Here are some additional specs:
* Part Number: 68500 (12V)
* Rated Line Pull: 9,500 lbs. (4310 kgs) single-line
* Motor: 12V 6 hp (4.48kw), High Output Parallel Series Wound
* Electrical controls: Contactor
* Remote Control: Remote switch, 12 ft (3.7m) lead
* Geartrain: 3-stage planetary
* Gear ratio: 156:1
* Clutch (freespooling): Sliding ring gear
* Brake: Automatic direct drive cone
* Wire rope: 100 ft, 5/16 in diameter (30m, 8mm diam.)
* Fairlead: Roller
* Recommended battery: 650 CCA minimum for winching
* Battery leads: 2 gauge, 72 in (1.83m)
* Finish: High-gloss powder coat over primer undercoating
* Drum diameter/Length: 2.5 in/9.0 in (6.4cm/23cm)
* Weight: 87 lbs (39.5 kgs)
Additional Information
Line Length: |
100 ft |
Line Pull: |
9,500 lbs |
Max Line Speed: |
38 ft/min |
Current Draw: |
425 amps |
Remote: |
Wired |
Intended Usage: |
Frequent |
Solenoid: |
Remote |
Line Type: |
Steel Cable |
Shipping Weight: |
95lb |
Shipping Dimensions: |
27in x 19in x 8in (L x W x H) |
