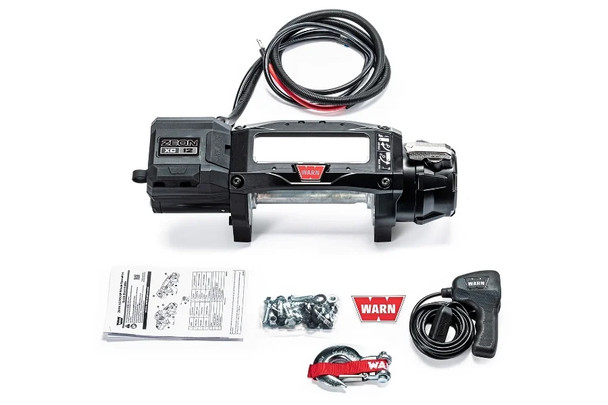

12,000 lbs. single-line pulling capacity. Winch only with ruggedized corded remote. Rope and fairlead sold separately.
All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces High-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min—the fastest in its class Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated Corrosion resistant black fasteners meet the highest OEM-grade specifications All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency Remote socket can be relocated up to 9” away from control pack without disassembly Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31” relocation kit; PN 111991: ZEON XC 78” relocation kit) Motor can be rotated up to 90° forward; control pack moves with motor; transmission can be clocked up to five different positions The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed Large diameter aluminum-alloy drum reduces rope wear and helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation Automatic load-holding cone brake offers excellent control and holding strength Exceptionally durable corded remote with 12’ lead Specifications:
Rated Line Pull (Single Line) -12,000lbs (5443 kg) Motor - 12V DC, series wound Electrical controls - Albright Contactor Remote Control - Remote Switch, 12" (3.7m) Geartrain - 3-stage planetary Gear Ratio - 176:1 Clutch (freespooling) - Rotating Ring Gear Brake - Automatic, six segment mechanical cone Drum diameter/Length - 3.15”/9.0” (80mm/229mm) Rope - No Rope Fairlead - No Fairlead Recommended Battery - 650 CCA minimum for winching Battery leads - 2 gauge, 72” (1.83m) Zeon Finish - Satin-black powder coat Corrosion Resistance - 408 hour salt spray, OEM grade fasteners Ingress Protection - IP68/IP69K rated waterproof Warranty - Limited lifetime mechanical, 7 years electrical Zeon Dimensions - length: 22.06" (560.3mm), height: 7.83" (198.8mm) Mounting Bolt Pattern - 10" x 4.5" (254mm x 80mm) Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
