Description

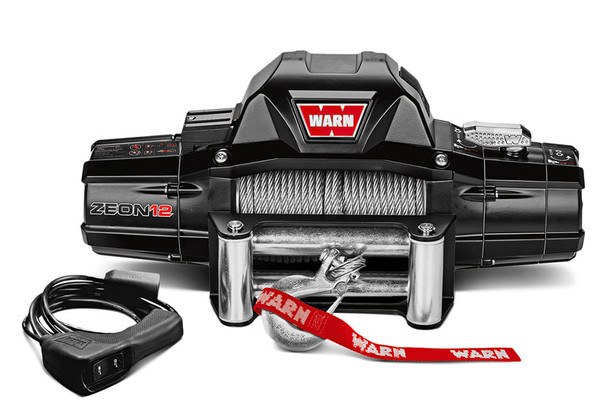

The 12,000 lb. capacity ZEON 12 is great for full-size 3/4-ton and one-ton trucks and bigger built 4x4s. It offers premium components and performance that continues to be the go-to winch for off-roaders worldwide. These premium winches offer IP68 waterproofing, efficient electrical systems, powerful motors, and fast lines speed among a host of other word-class features. Plus, they're designed, engineered, and assembled in the USA.
The WARN ZEON continues to redefine winching. ZEON is the premium winch line for trucks, Jeeps, and SUVs, and provides unmatched durability, performance, and style. These winches have become top sellers for a good reason: They've been the top choice of off-roaders worldwide, and look as good as they perform.
Features
- Automotive-grade busbars replace unsightly wires for greater electrical efficiency, superior connection, and a cleaner look
- Full metal armor protects vital components from impact and damage
- Twice the corrosion resistance of entry-level winches; rated to 408 hours in rigorous salt-spray tests
- Fast no-load line speed, up to 22% faster than our Standard Duty winches
- Includes 80' of durable 3/8" steel rope and a roller fairlead
- Full IP68 waterproofing to keep water and the elements out
- Large diameter drum for longer rope life; unique and durable rope attachment point
- Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
Videos
View AllCloseAdditional Information
Line Length: |
80 ft |
Line Pull: |
12,000 lbs |
Max Line Speed: |
30 ft/min |
Current Draw: |
375 amps |
Remote: |
Wired |
Intended Usage: |
Frequent |
Solenoid: |
Integrated |
Line Type: |
Steel Cable |
Shipping Weight: |
90lb |
Shipping Dimensions: |
27in x 19in x 9in (L x W x H) |
Requires Mount: |
Yes |
Mount Type: |
Fixed Mount |
Color: |
Black |
Cable Length: |
80 ft |
Cable Material: |
Steel |
Motor Voltage: |
12 2h |
Rated Line Pull: |
12000 lb |
Capacity: |
12,000 lb |
Product Type: |
Winch |
Remote Type: |
Wired |
Rope Type: |
Steel Cable |
Last Updated: |
11/6/2026 |
